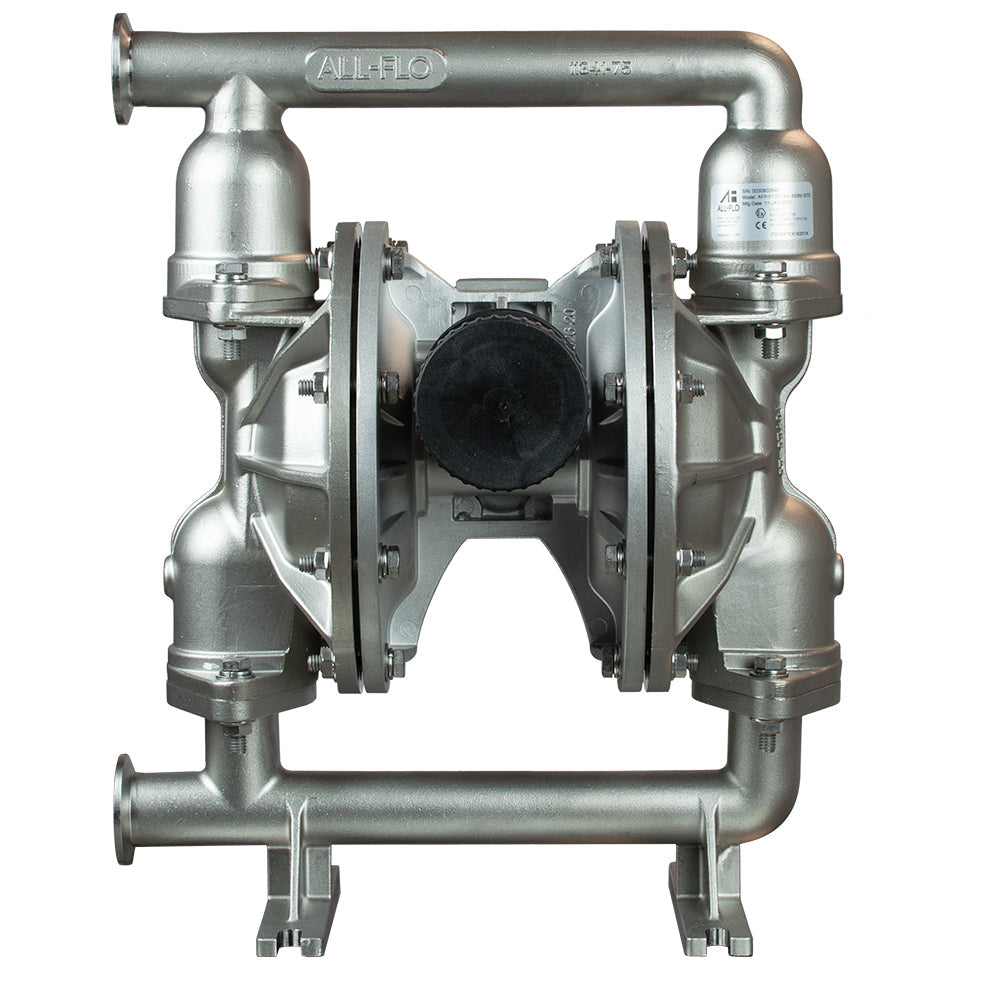

The All-Pur FDA-Series AODD pump is designed for fluid transfer in the food and beverage industries. Like all All-Flo pumps, this pump is built to last with an air mechanism that features the fewest moving parts of any pump on the market. This pump also has a simple streamlined bolted body design with minimal moving wet end parts, which allows for easy maintenance and repairs. This is a highly efficient metal FDA-approved pump that will give you years of reliable service.
Specifications
- Tri-Clamp connections
- Fluid Connection Sizes
- F100: 1 1/2" Connnection
- F150: 2" Connection
- F200: 2 1/2" Connection
-
Air Inlet Connection Sizes
- F100: 1/4" FNPT Connnection
- F150: 3/4" FNPT Connection
- F200: 3/4" FNPT Connection
- Fluid End Material: polished and passivated stainless steel
- Air End Construction Material:
- F100: Aluminum, PTFE Coated Aluminum
- F150 & F200: Aluminum, PTFE Coated Aluminum, Stainless Steel
- Elastomers Available
- PTFE
- Santoprene
- Hytrel
- Maximum Lift:
- F100: 17 ft- H2O Dry, 30 ft-H2O Wet
- F150: 22 ft- H2O Dry, 31 ft-H2O Wet
- F200: 24.4 ft- H2O Dry, 31.7 ft- H2O Wet
- Maximum Solids: 1/4"
- Maximum Pressure: 120 PSI
- Maximum Flow Rate:
- F100: 48 gpm
- F150: 115 gpm
- F200: 190 gpm
