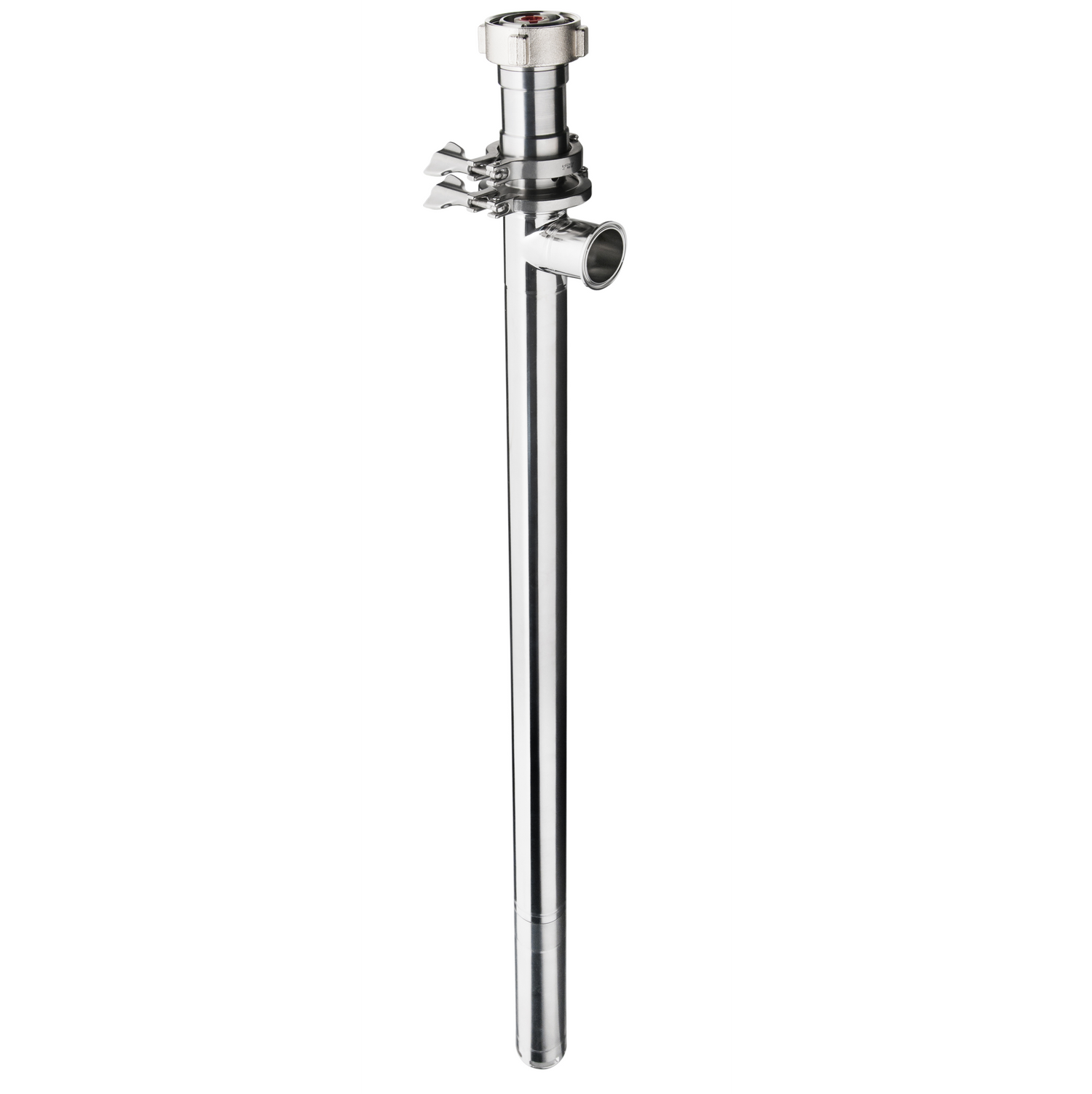

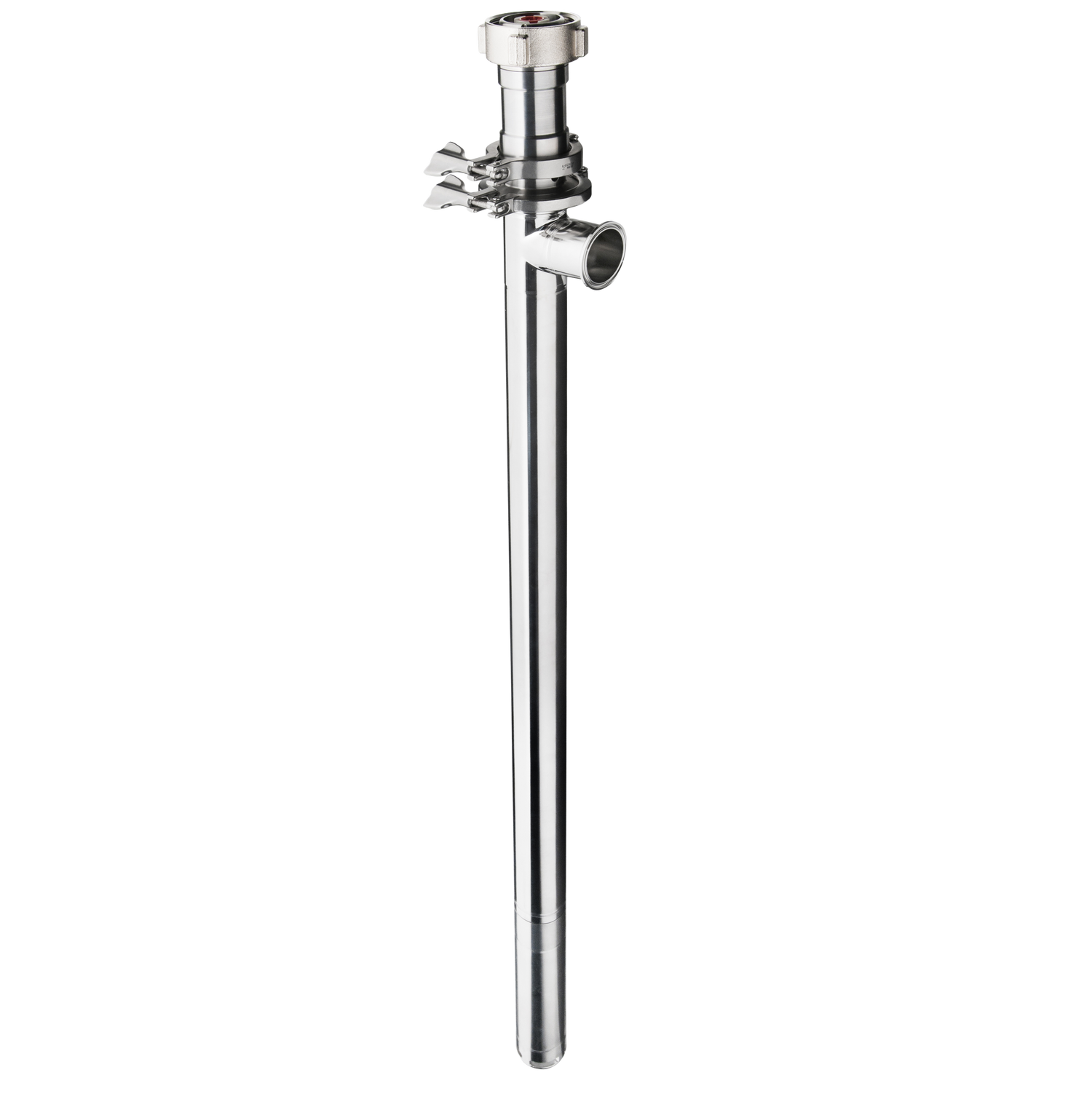

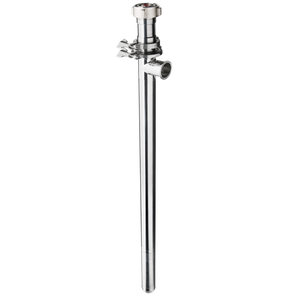

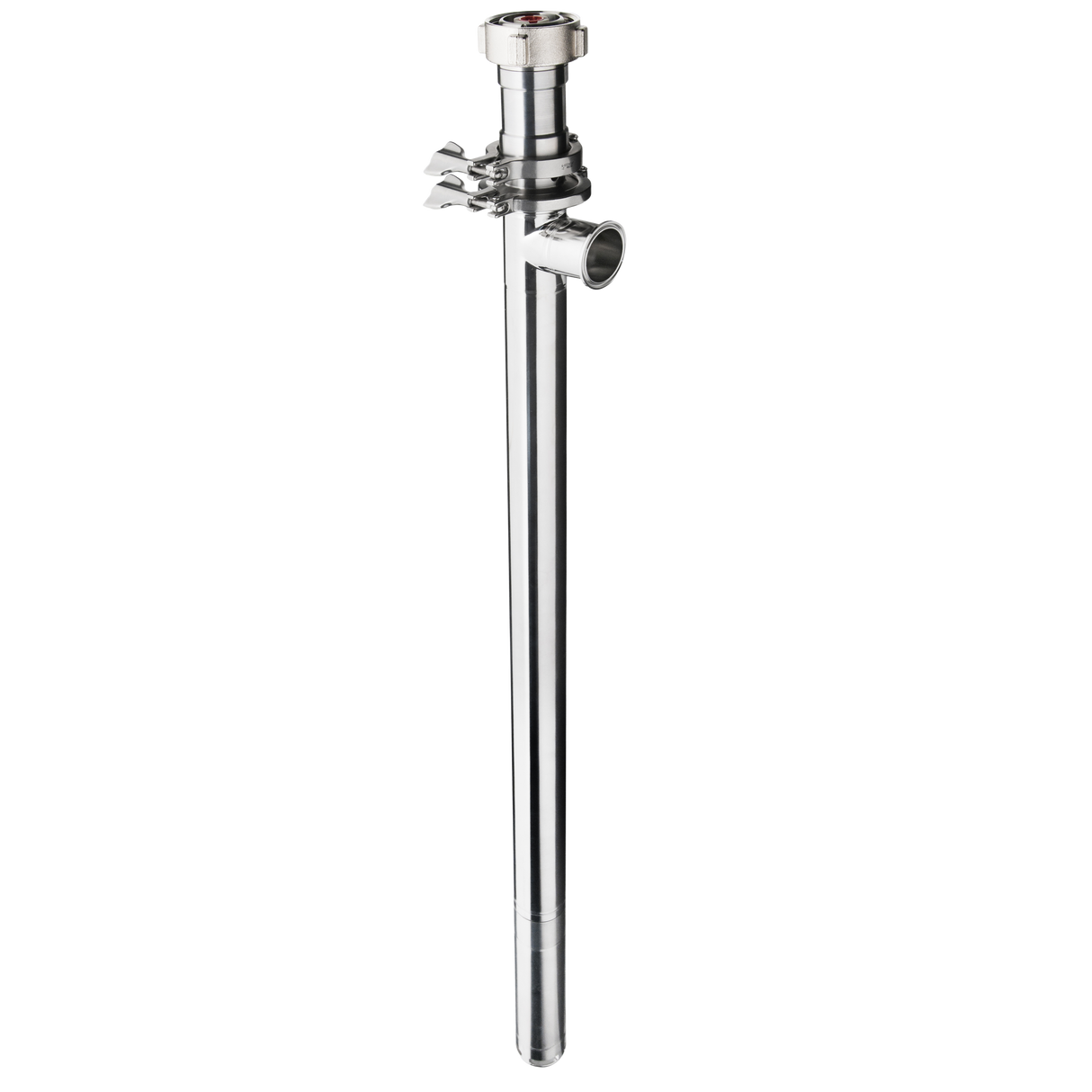

The FDA-certified F570 FLUX VISCOPOWER progressive cavity barrel pump is designed for food and beverage processing applications. The lightweight modular design makes this sanitary pump easy to clean, repair, and move around. This pump features a closed mechanical seal, making it hygienic and FDA certified. The F570 is perfect for the food and beverage processing industries for transferring products out of barrels, totes, and drums. This pump comes with a standard R52 rotor, PTFE stator, and FKM seal, however, a variety of other materials and styles are available upon special order making this pump customizable to your specific application. Our sales team is happy to help you pick the perfect pump.
F570 Construction:
- Seal: Closed Mechanical Seal
- Pump Type: Progressive cavity w. 16:1 Gearbox
- Construction Material: Stainless Steel
- Seal Material: SiC
- Elastomers Material: FKM
- Pump Shaft: Torsion Shaft
- Rotor: R52 (R17 an R33 available upon request)
- Stator Material: PTFE (NBR and FKM available on special order)
- Immersion Depth: 27”, 39”, 47”, 60”
- Connections: 2” Tri-Clamp (Adapters available upon request)
- Certifications: ATEX
F570 Technical Data:
- Temperature: Up to 248°F (120°C)
- Viscosity: 1 - 80,000 cPs
- Flow rate: max 21.9 GPM (83 l/min)
F570 Compatible Motors
F416 Air Motor
The F416 is a lightweight and powerful explosion-proof air motor. This is a variable-speed motor, which is achieved by adjusting the input air operating pressure with a ball valve, needle valve, or a filter/regulator.
Technical Data:
- Certifications: ATEX Ex II G IIC T6
- Inlet Air Pressure: max 87 PSIG
- Air Consumption: max 17 cfm
- Capacity: 470 W
- Ventilation: External
- Variable Speed: Optional
- Weight: 2 - 3 lbs (0.9 - 1.4 kg)
There are three options for this motor:
- With trigger (A trigger operation, with no ball valve)
- With ball valve (A ball valve but no trigger)
- Without valve or trigger (No trigger or ball valve)

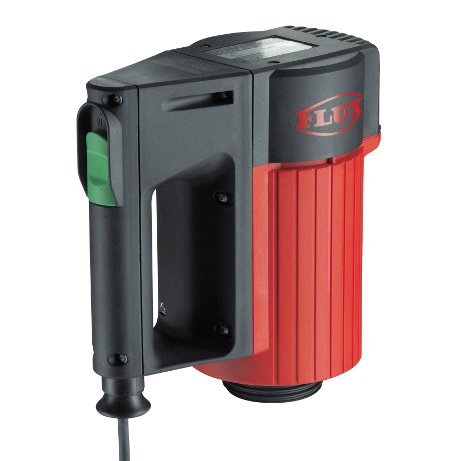

F457 Electric Motor
The F457 is an electric motor built for durability and power while maintaining low noise levels. It has a powerful commutator motor and efficient air cooling within a compact design. This motor is also available as variable speed.
Technical Data:
- Enclosure: IP 24
- Ventilation: Internal
- Voltage: 120 volts or 230 volts
- Frequency: 50 - 60 Hz
- Capacity: 800 W
- Weight: 8.8 lbs (4 kg)
