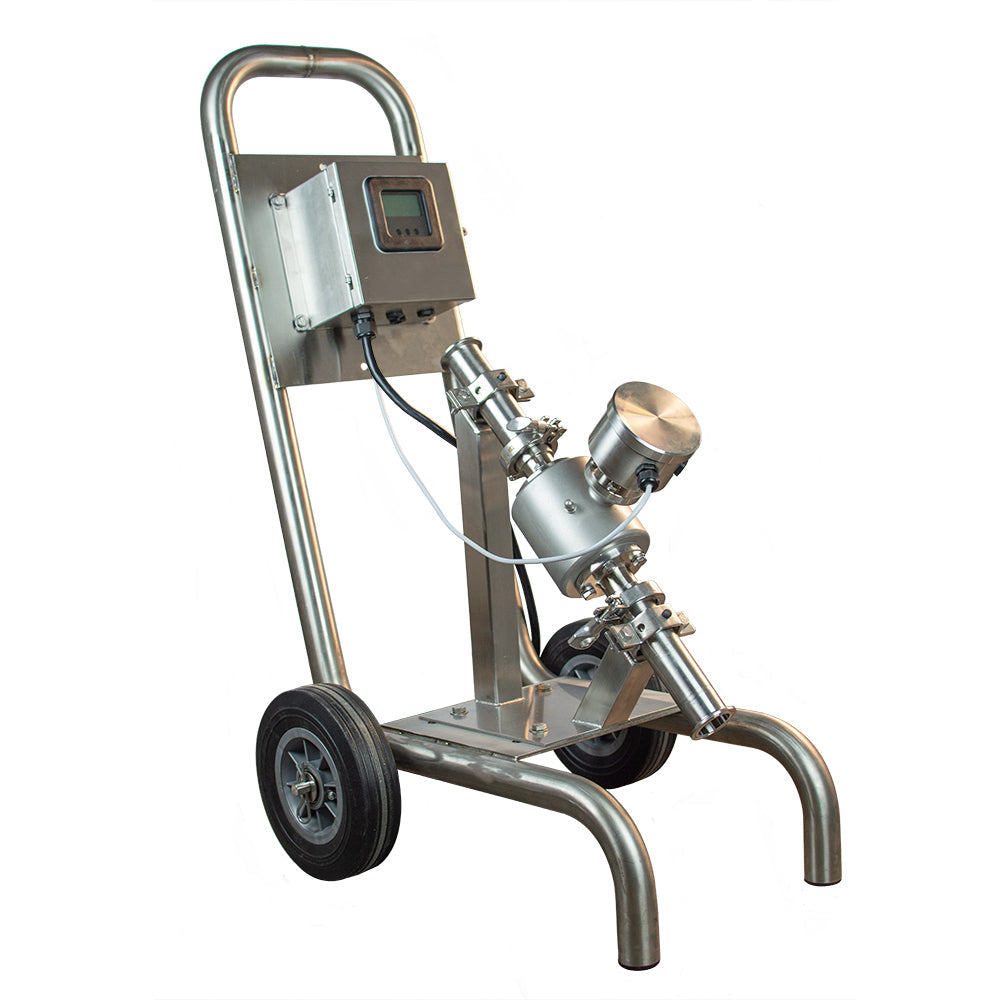

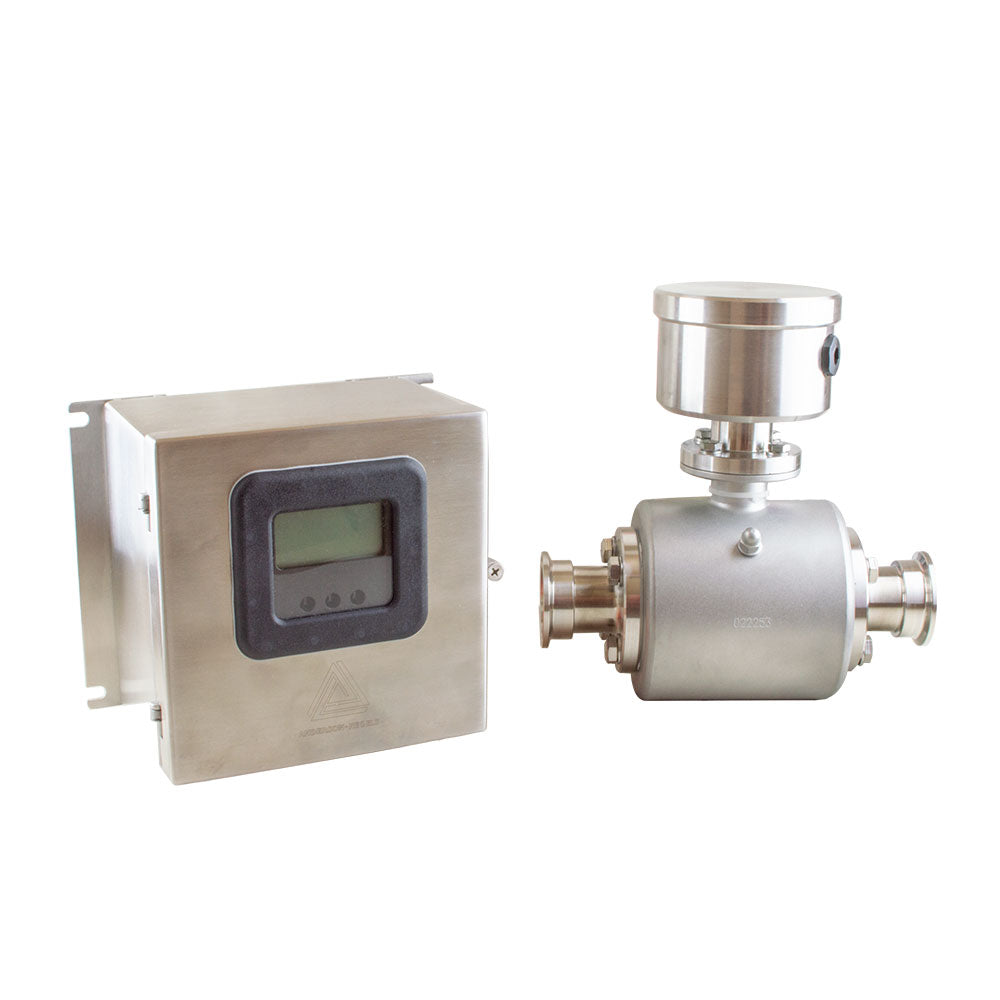

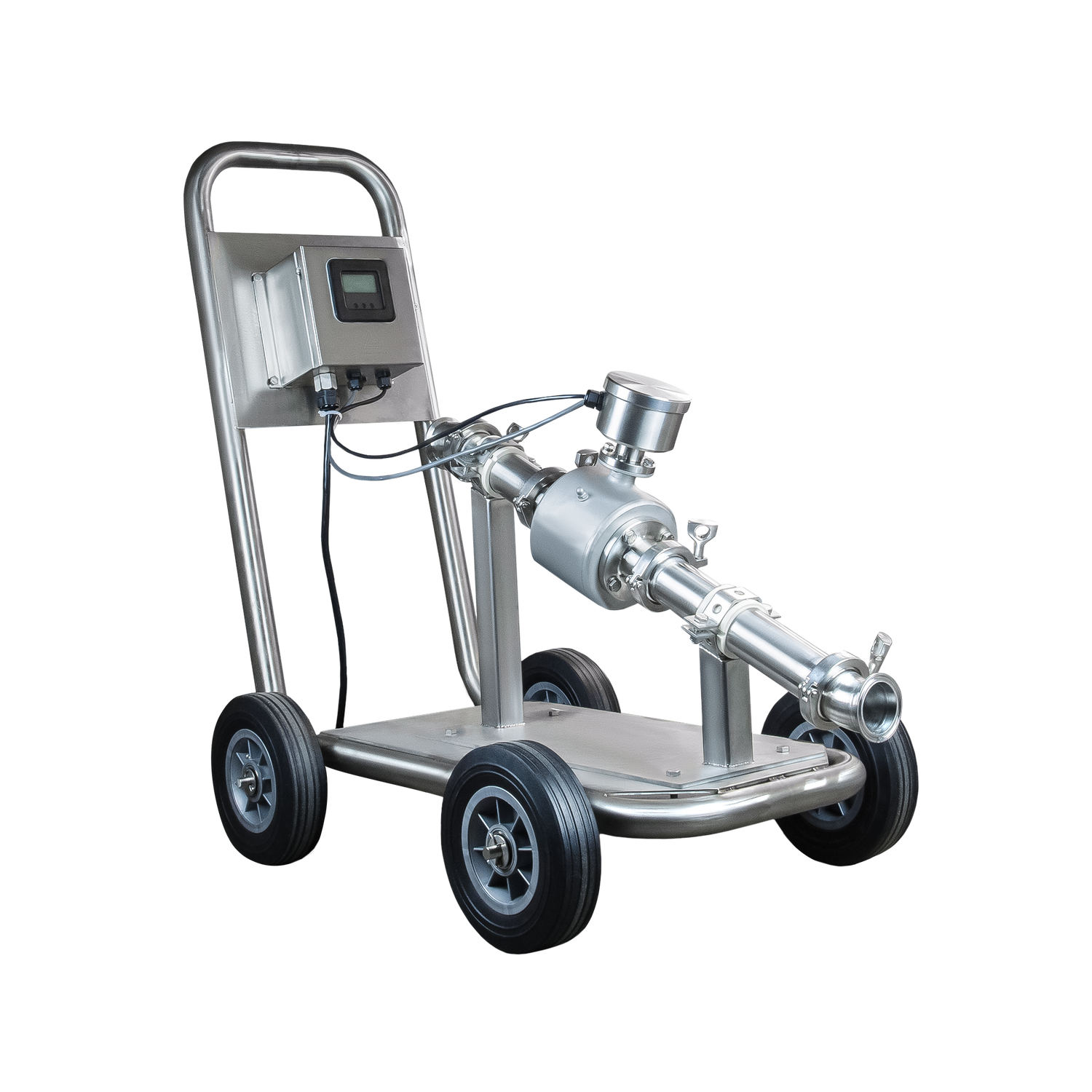

The IZMAG is Anderson-Negele’s full-featured electromagnetic flow meter. The IZMAG is paired with an IZMS meter and is mounted on a stainless steel cart.
Building on the qualities that have made its predecessor, the IZMS meter, the industry-standard in accuracy and longevity, the IZMAG incorporates new design and performance features that allow the IZMAG to excel in the most demanding sanitary processing environment. From the outside, one will recognize that a compact, all stainless steel housing now provides the highest level of protection from the cleaning chemicals and environmental extremes present in food processing facilities. A standard backlit graphic display provides the metering information not only as numbers and text but also has the ability to display images. By using images along with text a more intuitive feel to navigation is achieved making the programming experience quicker and simpler. On the inside, a PFA liner offers increases in pressure, temperature and vacuum capability. This new liner gives the IZMAG the ability to satisfy an expanded list of high temperature and aseptic applications. In addition to the other features, the flow meter has a compact overall size allowing installation into tight-fitting applications without a sacrifice in measurement performance.
Features
- 1 1/2" Tri-clamp connection
- Compact design
- Stainless steel housing
- +/- 0.20% accuracy
- Outputs: (2) digital pulse output 24 VDC @20 mA, (1) digital status output 24 VDC @20 mA, (1) 4-20mA passive/active
- Temperature Limits: 32-212F (0-100C) Local Electronics and 32-325F (0-163C) Remote Electronics
- 1.4-145 psi abs
- 115 VAC powered
- Stainless steel cart
Applications:
- Beer
- Wort
- Wine
- Dairy
- Molasses
- Tomato paste
- Concentrates
- Cleaning solutions
| Size | Min Flow | Max Flow |
| 1 1/2" | 1.3 GPM | 130 GPM |
| 2" | 3 GPM | 300 GPM |
Please give us a call if you are looking for a size that is not offered in our online store.
