C+114MD Quick Ship Portable Pump Assembly

$2,820.00

SKU: PP/C+114MD-1HP-115/1/60

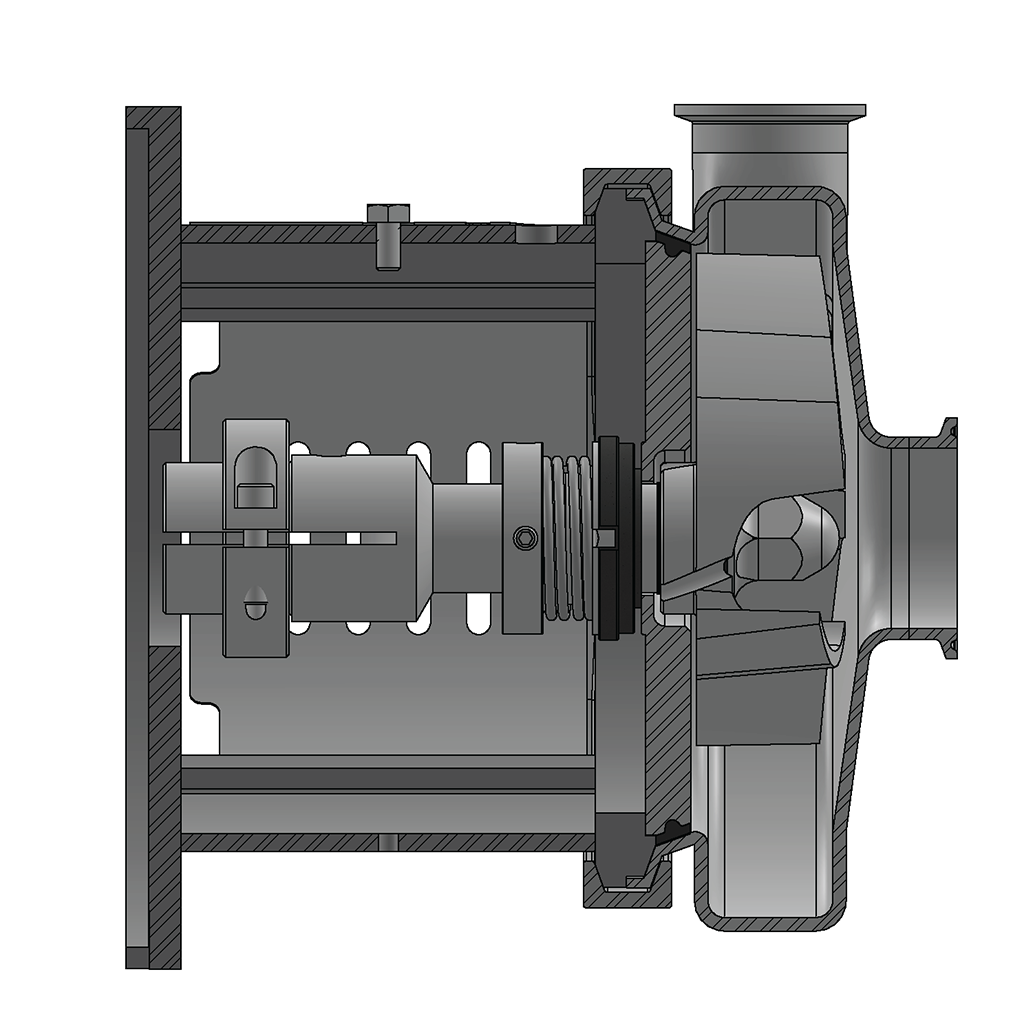

The C+114MD is the original C-series centrifugal pump re-imagined. It has kept the original casing design and popular external mechanical seal options, however, it features a collar that clamps down on the drive shaft over a full 360 degrees removing the minor wobble that can occur from set screwed shafts. The impeller pin was also replaced with a threaded impeller nut that fully secures the impeller in place; there are two specialized gaskets to seal the shaft and to still allow a CIP procedure to clean behind the impeller. The collar and bolted impeller reduce rattling sounds at lower speeds.

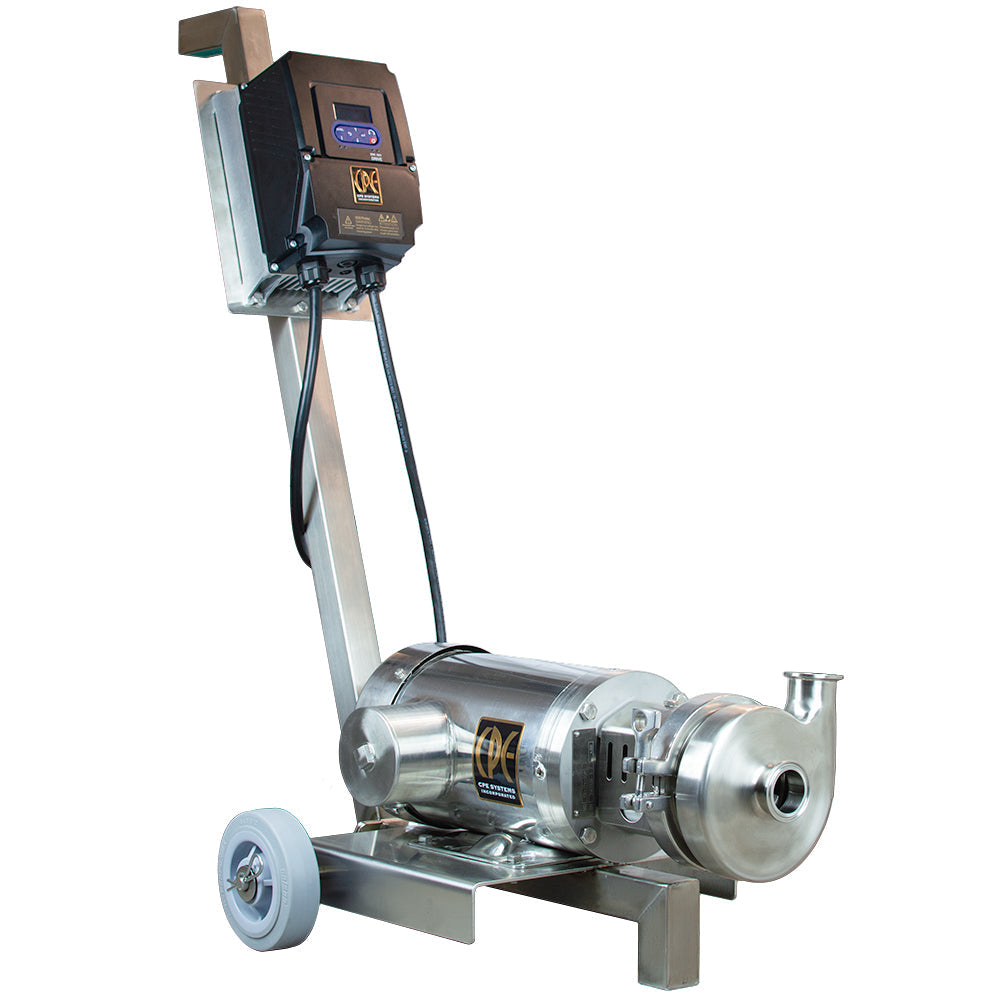

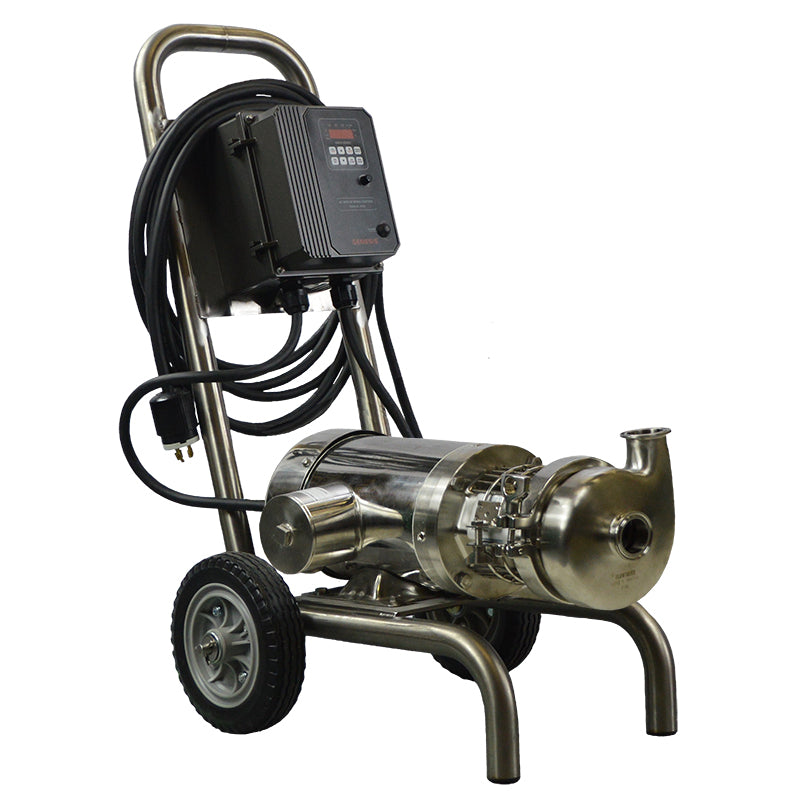

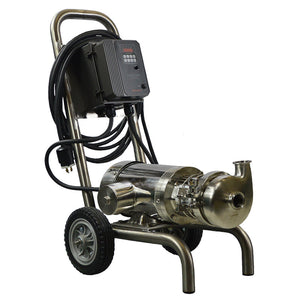

The C+114 pump head is attached to our stainless steel washdown motor, mounted on a Canadian-made stainless steel cart and fitted with a NEMA 4X variable speed control (VFD).

Technical Specifications

Features:

  • 1 1/2" X 1 1/2" Tri-clamp connections
  • Stainless steel washdown motor
  • 316L stainless steel construction (wetted parts)
  • 304 stainless steel adapter

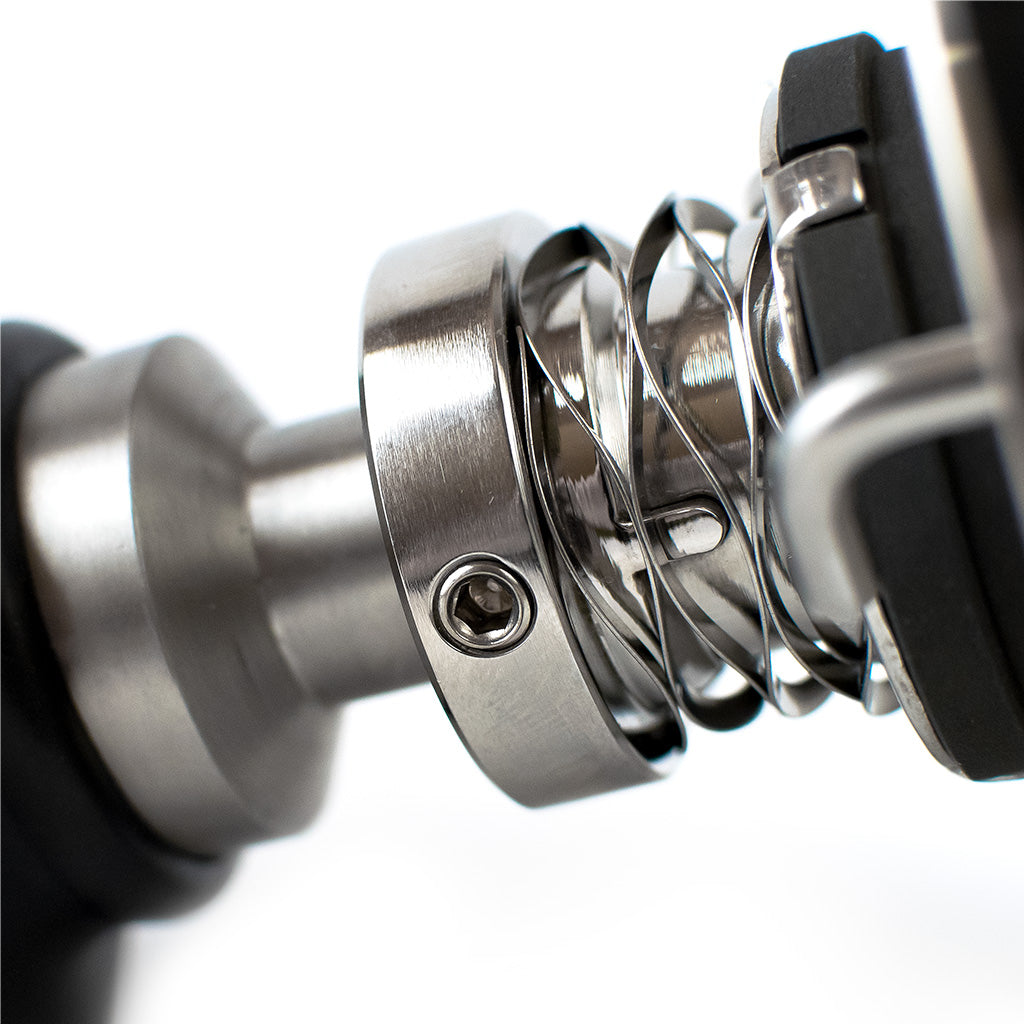

  • External mechanical seal
  • Canadian-made stainless steel cart

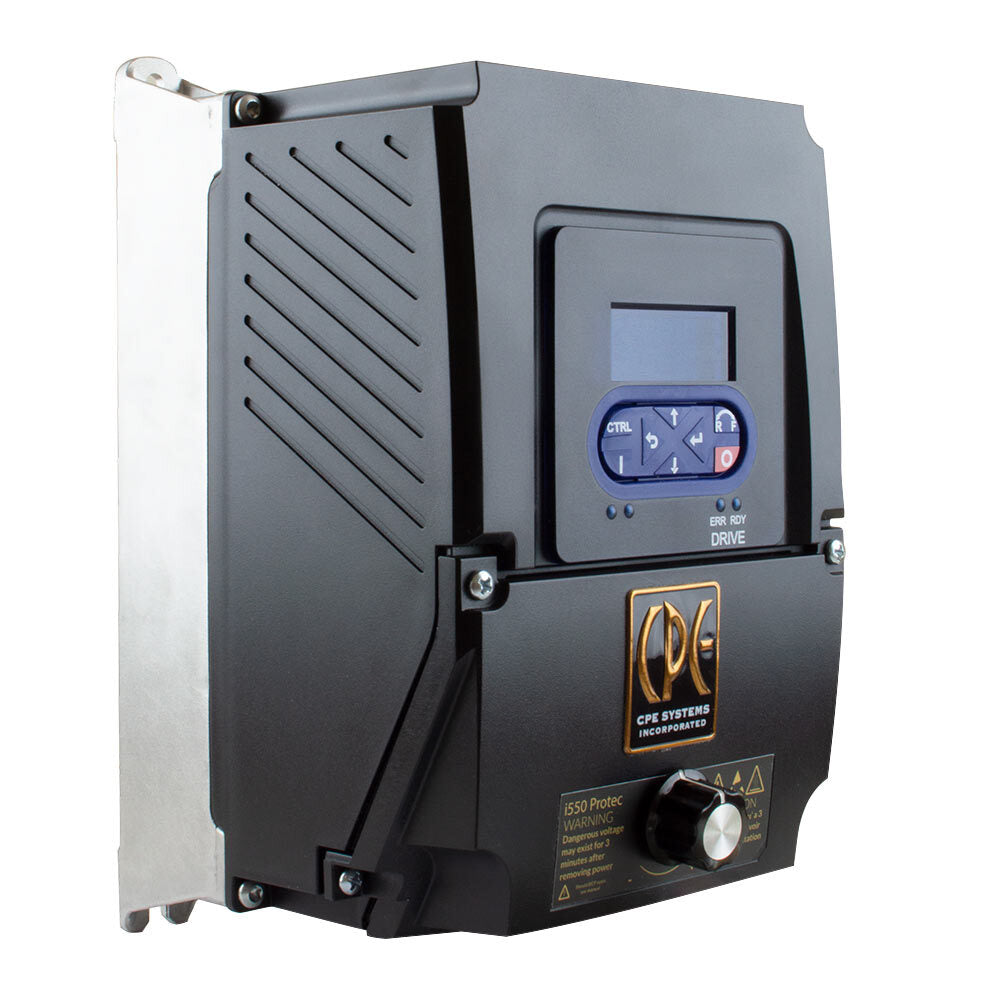

  • NEMA 4X VFD with a potentiometer

SEAL OPTIONS:

"D" Single mechanical external seal

"DG" Single mechanical external seal with replaceable silicone carbide seat

"F" Single mechanical external seal with water cascade

Horsepower

1 HP: The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.

1 1/2 HP: The capacity of this pump is 100 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (10 - 15 BBL) and estate wineries.

2 HP: The capacity of this pump is 125 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (> 15 BBL) and larger estate wineries.

3 HP: The capacity of this pump is 150 GPM and it will put out 75 ft of head pressure, ideal for large microbreweries (>25 BBL) and larger estate wineries.
