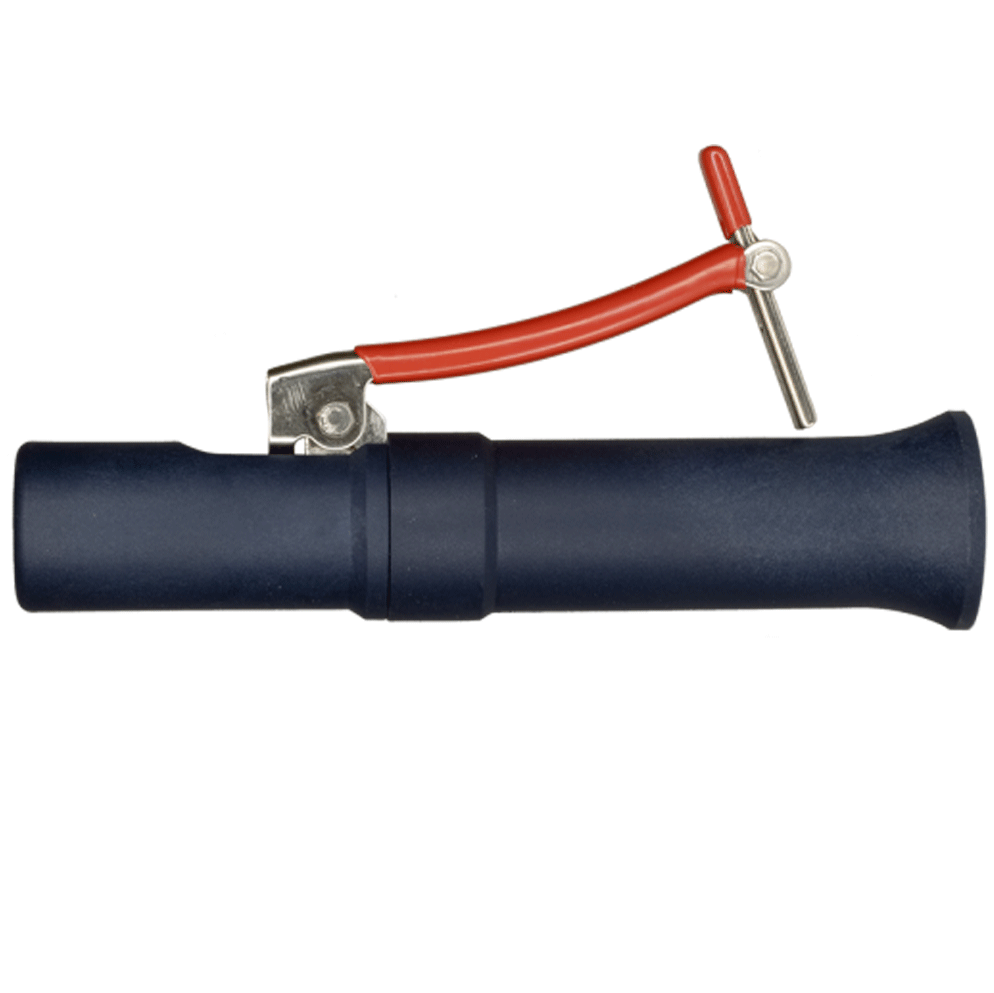

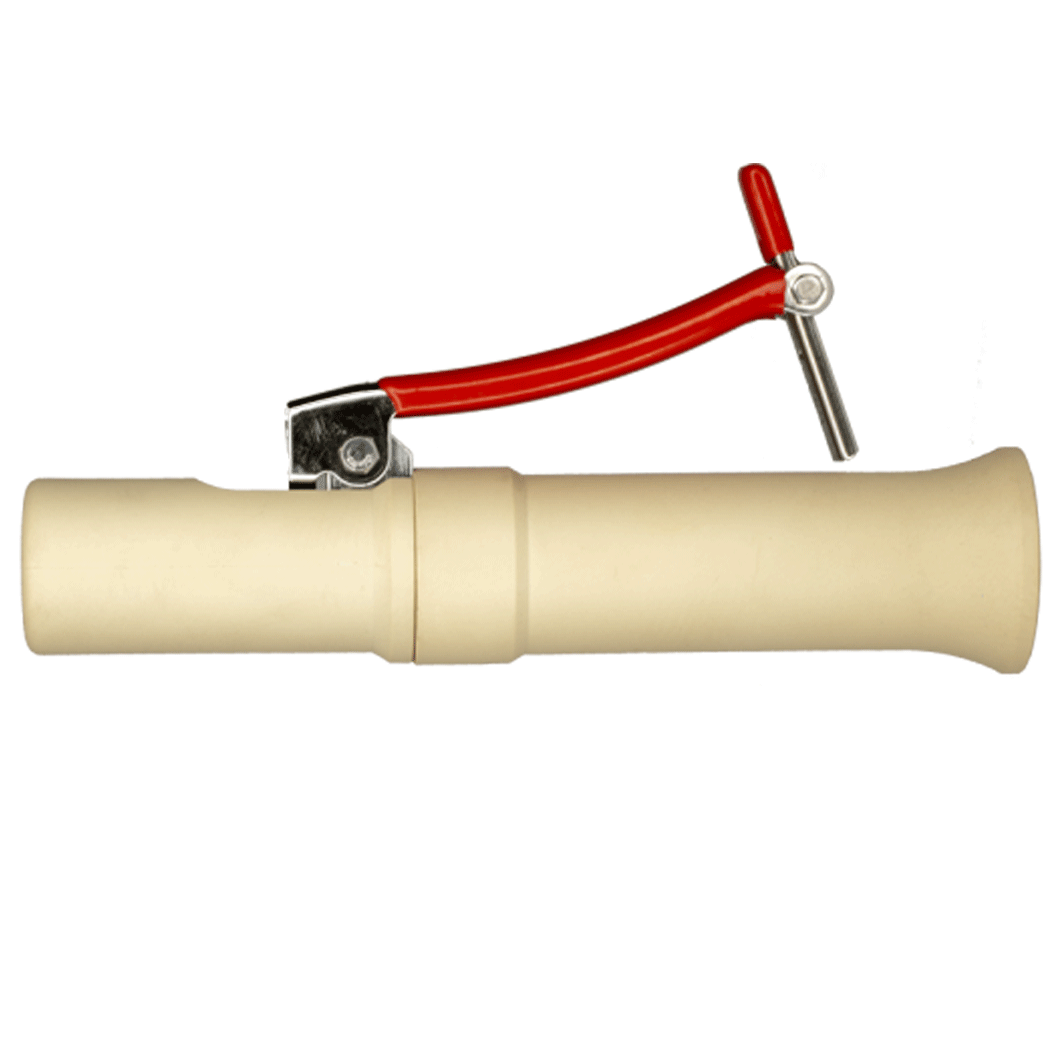

The Duraspray Nozzle by SuperKlean is a hanging nozzle specially designed for spraying hot water downward from a vertical hanging position. Originally designed for the meat processing industry, the DuraSpray is perfect for any processing plant that uses overhead hose mounts for sanitation and washdown. Overhead hose mounts are becoming more common in industrial environments as they are efficient on space and remove the labour of dragging hoses across the floor and prevents the resulting hose wear and damage. The DuraSpray nozzle has variable spray patterns and comes equipped with a locking mechanism to prevent any accidental water discharge. The drip-free automatic shutoff feature ensures water conservation upon lever release.
Adapters are available for this hose nozzle.
DuraSpray Nozzle Features:
- Designed for hanging hose applications
- Anti-spray mechanism built into the trigger
- Quick connect receptacle for accessories
- Compatible with the Durawand
- 304 Stainless Steel Construction
DuraSpray Nozzle Technical Specifications:
- Inlet Connection: ½” Female NPT
- Materials:
- Nozzle Body: Stainless Steel and coated with Epoxy Resin
- Cartridge: Stainless Steel
- Recommended Operatve Conditions
- Maximum Pressure: 150 PSI
- Maximum Temperature: 200°F (93°C)
- Weight: 1.25 lbs
High Flow
| Inlet Pressure (PSIG) | Flow Rate (GPM) |
| 25 PSIG | 4.39 GPM |
| 50 PSIG | 6.54 GPM |
| 75 PSIG | 8.18 GPM |
| 100 PSIG | 9.56 GPM |
| 125 PSIG | 10.83 GPM |
| 150 PSIG | 11.89 GPM |
Low Flow (Achieved with a flow restrictor adapter)
| Inlet Pressure (PSIG) | Flow Rate (GPM) |
| 25 PSIG | 2.93 GPM |
| 50 PSIG | 3.86 GPM |
| 75 PSIG | 4.91 GPM |
| 100 PSIG | 5.78 GPM |
| 125 PSIG | 6.71 GPM |
| 150 PSIG | 7.19 GPM |
