The Standard SuperKlean Washdown Hose is designed for hot water and mild chemicals in cleaning and washdown applications. Like all SuperKlean hoses, the smooth cover washdown hose is flexible, lightweight, economical, durable, and safe. The SuperKlean washdown hose is available in two different materials: EPDM and Nitrile. The EPDM model has a smooth cover that is resistant to abrasion, heat, and ozone and have a max pressure of 300 PSI. The yellow nitrile hose has added resistance to flame, oil, weathering and can withstand up to 500 PSI. The SuperKlean Washdown Hose Assembly comes in standard lengths of 25', 50', 75', and 100', and with two adapters: a Brass Swivel Hose Adapter (1/2" NPT x 3/4" Hose barb) and a 3 piece Brass Mixer Adapter (3/4" NPT x 3/4" Hose Barb). An optional crimped external sleeve can be added for enhanced fitting security, and an internal hose guard can be added to prevent kinking. Other swivel adapters and mixer adapters are available and can be fitted onto your assembly upon special request. Pair the SuperKlean Washdown Hose with a SuperKlean spray nozzle, hose rack, and water mixer for the ultimate washdown setup.

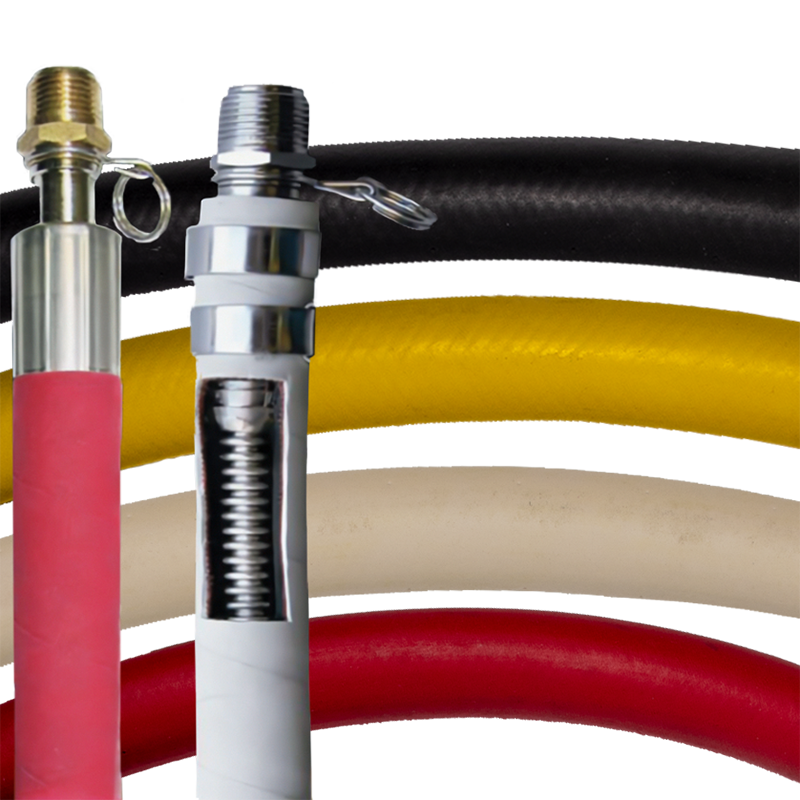

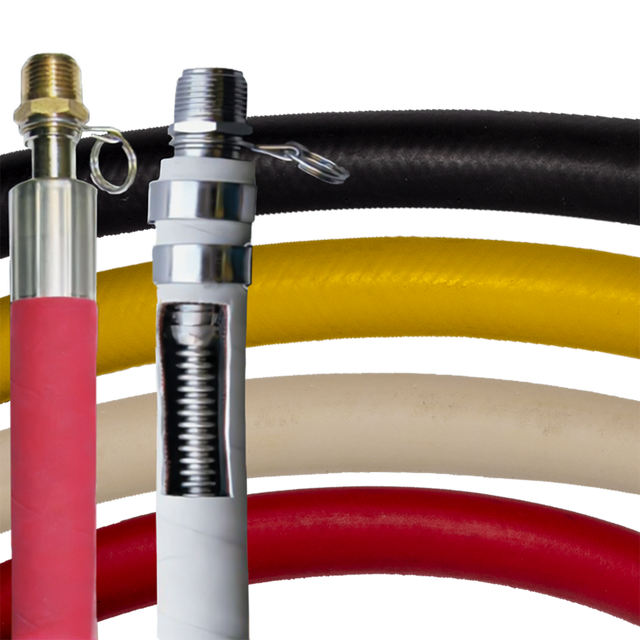

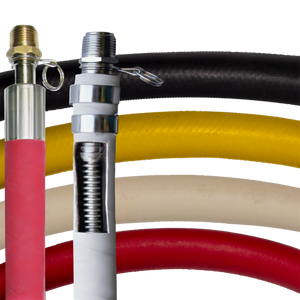

SuperKlean Washdown Hose Assembly Components:
- Washdown hose with a smooth cover
- Double-banded hose ends (optional crimped external sleeve)
- Two Adapters
- Standard Edition:
- 8-5/8-B Swivel hose adapter (1/2” NPT x 5/8” hose barb) brass and stainless steel
- 9-5/8-B 3 piece mixer adapter (3/4” NPT x 5/8” hose barb) brass
- Hose Guard:
- HG8-5/8-S Swivel hose adapter (1/2” NPT x 5/8” hose barb) stainless steel w/ 12” Long SS Hose Guard
- HG9-5/8-S 3-piece mixer adapter (3/4” NPT x 5/8” hose barb) stainless steel w/ 12” Long SS Hose Guard
- Standard Edition:
SuperKlean Washdown Hose Specifications:
- Smooth cover that is resistant to abrasion, heat, and ozone
- Weight: 0.4 lb/ft
- Inner Diameter: 0.75” (19.1 mm)
- Outer Diameter: 1.17” (30 mm)
- Working Temperature Range: -40°F – 212°F (-40°C – 100°C)
- Meets FDA requirements for washdown and sanitation

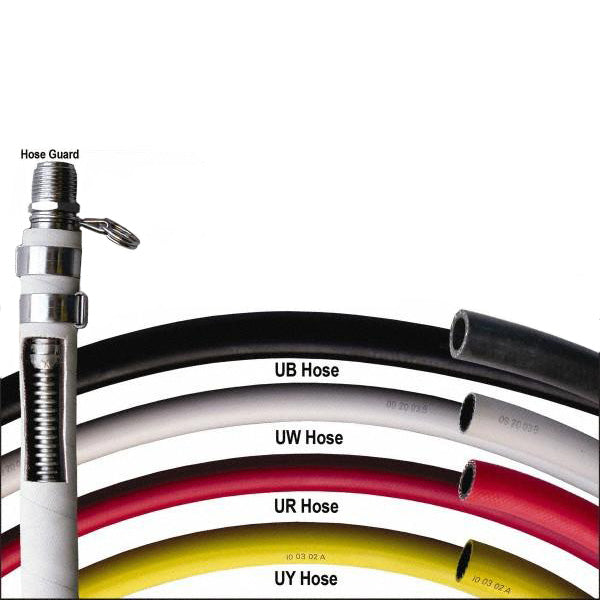

| Part # | Inner Diameter | Outer Diameter | Max. Pressure | Cover Colour | Cover Material | Tube Material | Reinforcements |

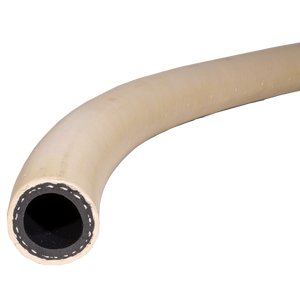

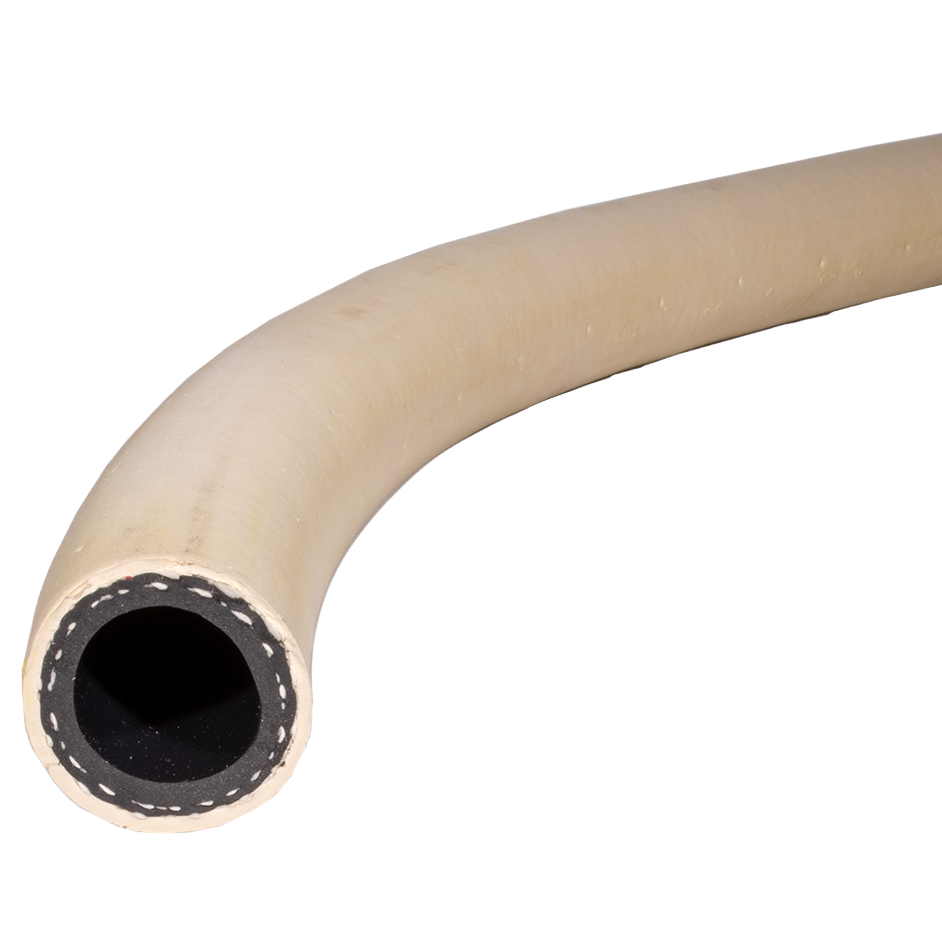

| UW | 3/4" (19.1 mm) | 1.17" (30mm) | 300 PSI | White | Smooth EPDM | EPDM | 4 Textile Plies |

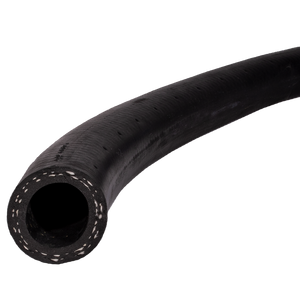

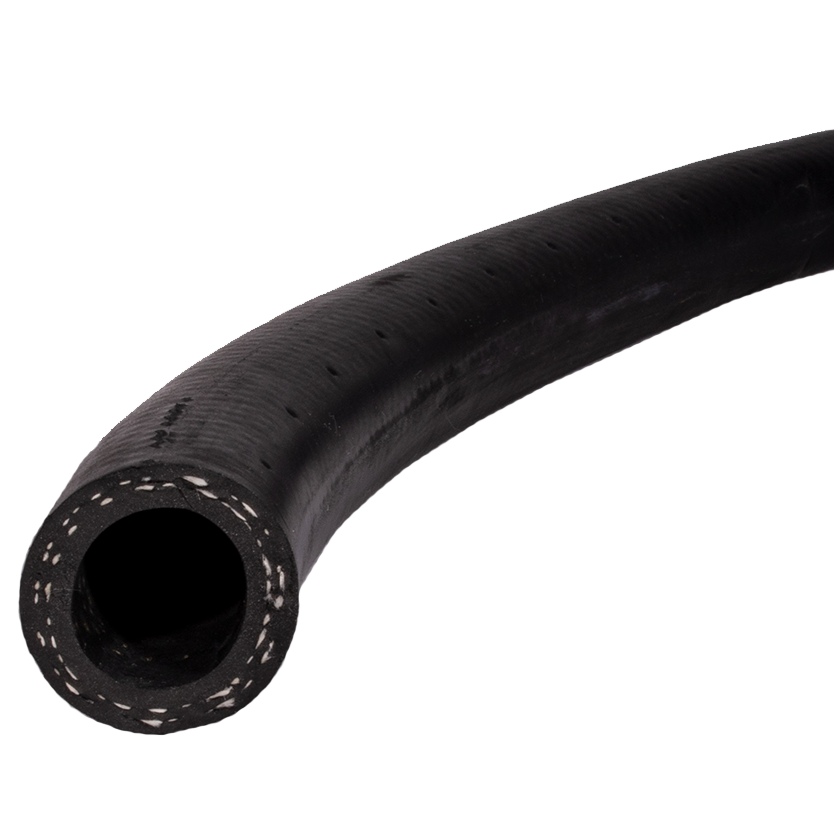

| UB | 3/4" (19.1 mm) | 1.17" (30mm) | 300 PSI | Black | Smooth EPDM | EPDM | 4 Textile Plies |

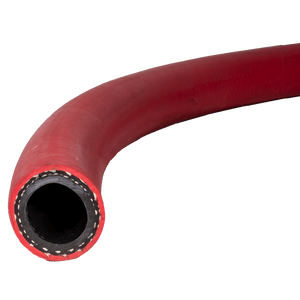

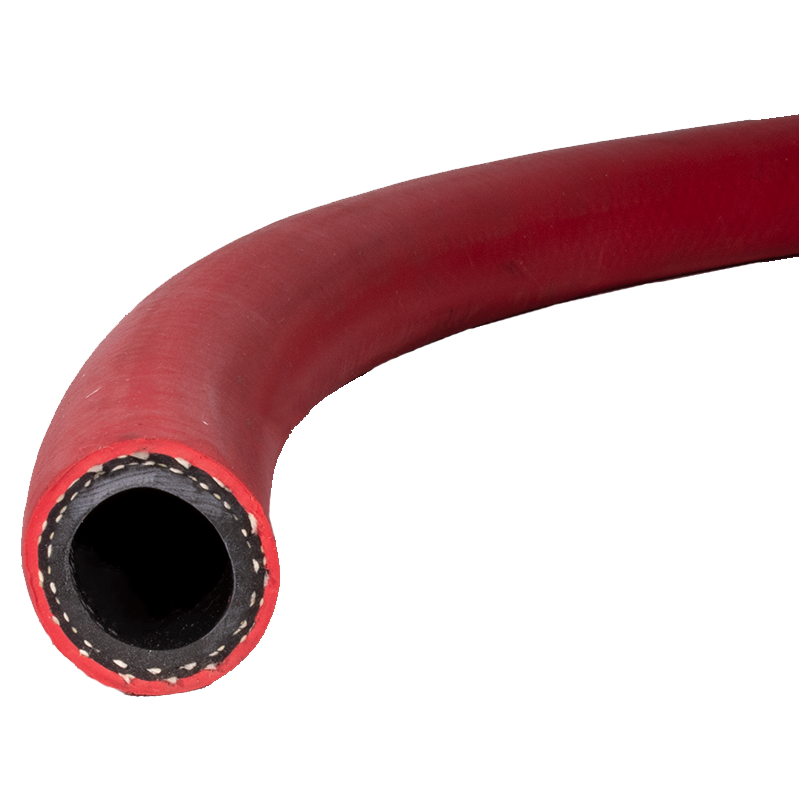

| UR | 3/4" (19.1 mm) | 1.17" (30mm) | 300 PSI | Red | Smooth EPDM | EPDM | 4 Textile Plies |

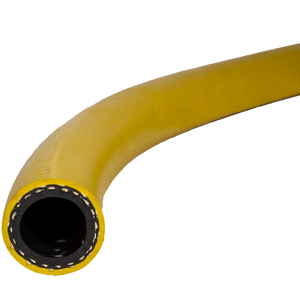

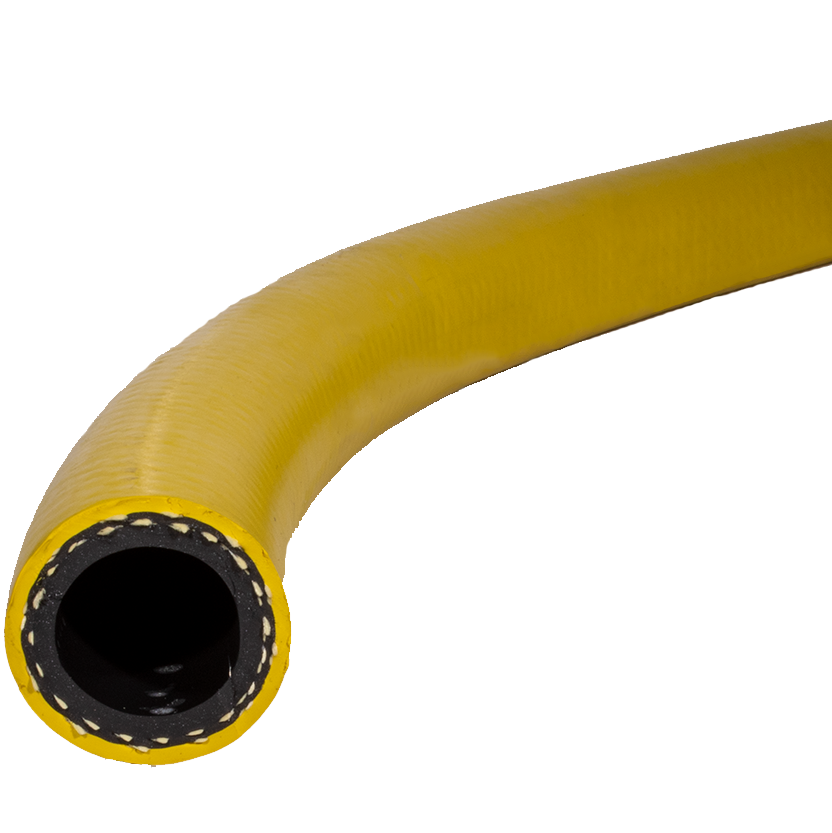

| UY | 3/4" (19.1 mm) | 1.17" (30mm) | 300 PSI | Yellow | Smooth Nitrile | Nitrile | 4 Aramid Plies |
