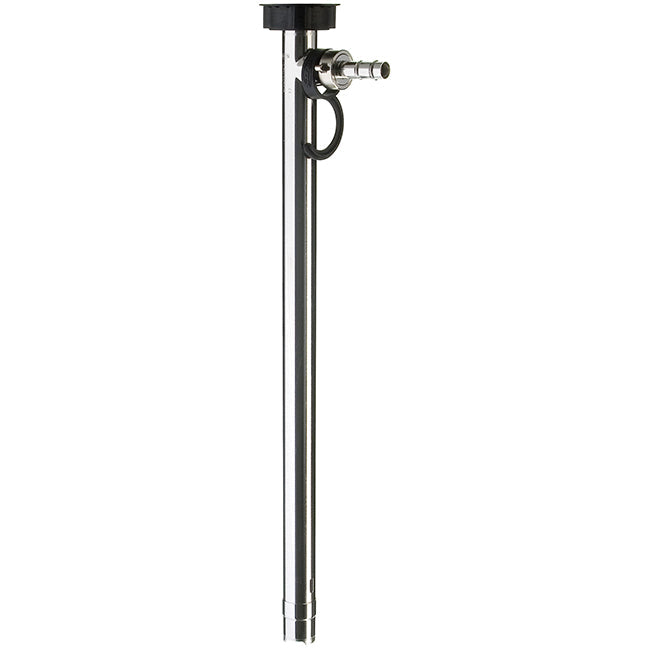

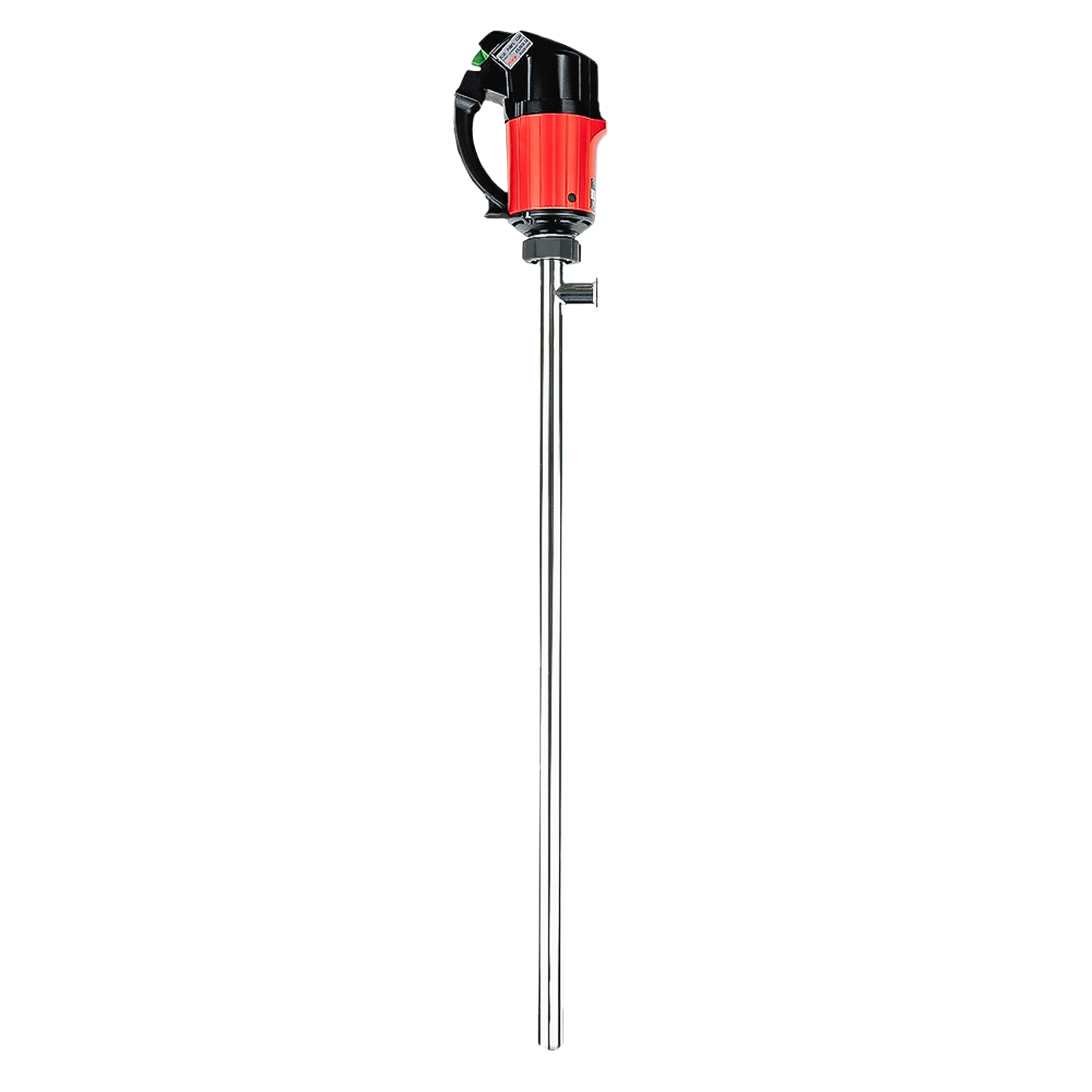

The F427 is FLUX's sealless sanitary drum pump designed to efficiently and hygienically transfer fluids from totes, tanks, IBCs, drums, barrels, containers, and more. The F427 S FOOD sanitary drum pump is FDA approved and meets the stringent requirements of the food, cosmetic, and pharmaceutical industries. The F427 is suitable for a wide range of lower viscosity products (up to 1000 cPs) such as wine, sauce, cosmetic products, edible oils, and beer. It is designed to be easy to completely disassemble and fully sanitize. The F427 S FOOD has no seal in the liquid zone and is designed to have minimal dead zones and reduced contamination risk. Due to the streamlined sealless design the F427 delivers pulsation-free pumping and can operate against closed-valves. This sanitary drum pump provides a reliable and hygienic solution for your fluid transfer needs. The F427 has three recommended motors and is available in four immersion lengths allowing you to choose the best fit for your operation. Other motors, immersion lengths, and materials are available by special order.
F427 Sanitary Drum Pump Features
- FDA compliant (FDA CFR 21)

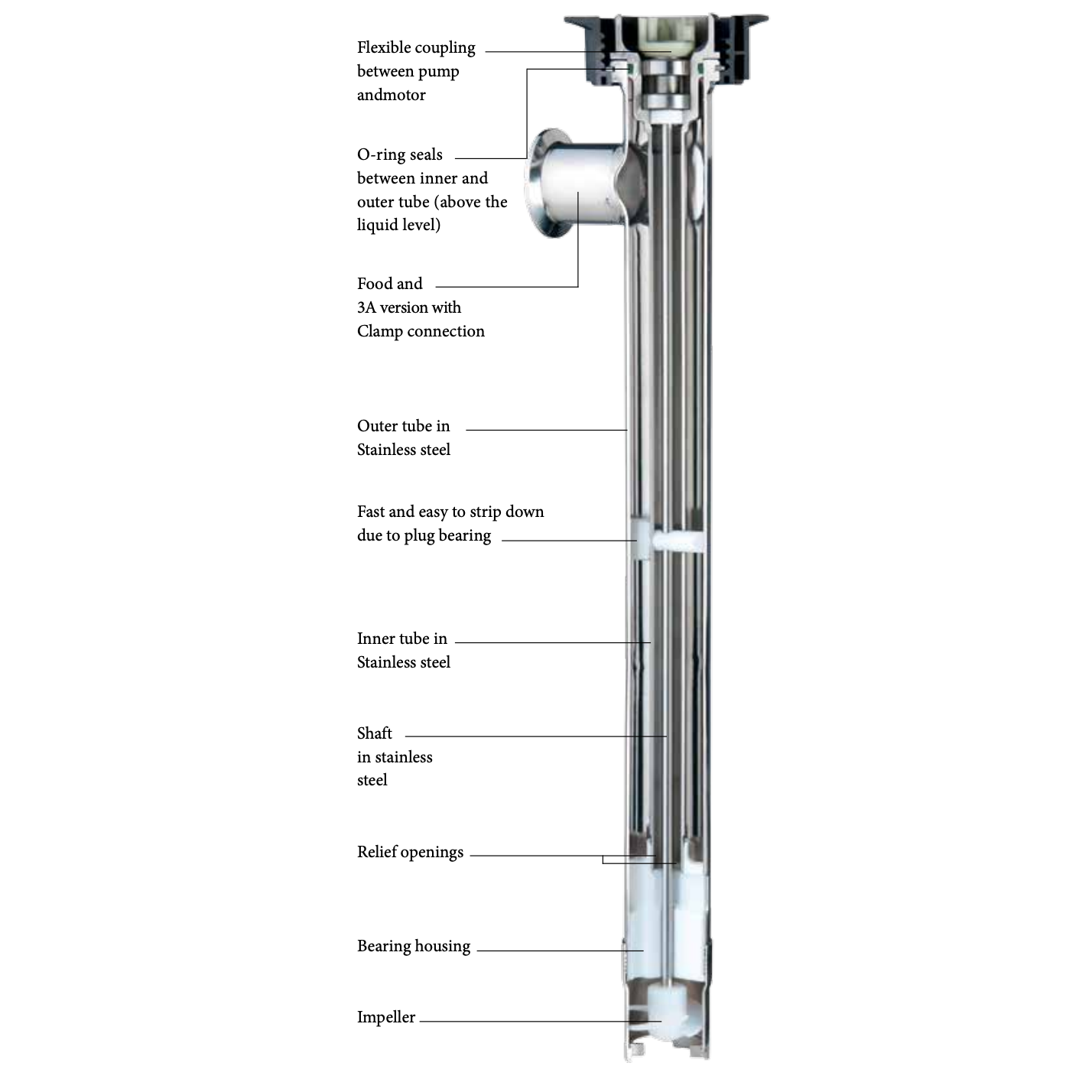

- Sealless in the liquid area
- Can be completely disassembled
- Can be fully sterilized
F427 Sanitary Drum Pump Technical Specifications
- Seal: No seal in the liquid zone
- Inner Tube Diameter: 43 mm
- Impeller Diameter: 38 mm
- Standard Immersion Length: 27", 39", 47", 60" (700 mm, 1000 mm, 1200 mm, 1524 mm)
-
Materials:
- Pump: Stainless Steel 316
- O-ring: FKM
- Shaft: Stainless steel
- Impeller: Stainless Steel
-
Operating range
- Media Temperature: 32 to 212°F (0 to 100°C)
- Ambient Temperature: -4 to 104°F (-20 to 40°C)
- Weight: 6.4 lbs
-
Performance Data:
- Max. Flow Rate: 63 GPM (240 LPM)
- Max. Delivery Head: 42 ft. (13 m)
- Max. Viscosity: 1000 cPs
F427 Sanitary Drum Pump Compatible Motors

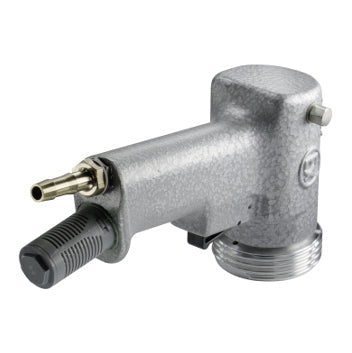

F416 Air Motor
The F416 is a lightweight and powerful explosion-proof air motor. This is a variable-speed motor, which is achieved by adjusting the input air operating pressure with a ball valve, needle valve, or a filter/regulator.
Technical Data:
- Certifications: ATEX Ex II G IIC T6
- Inlet Air Pressure: max 87 PSIG
- Air Consumption: max 17 cfm
- Capacity: 470 W
- Ventilation: External
- Variable Speed: Optional
- Weight: 2 - 3 lbs (0.9 - 1.4 kg)
There are three options for this motor:
- With trigger (A trigger operation, with no ball valve)
- With ball valve (A ball valve but no trigger)
- Without valve or trigger (No trigger or ball valve)

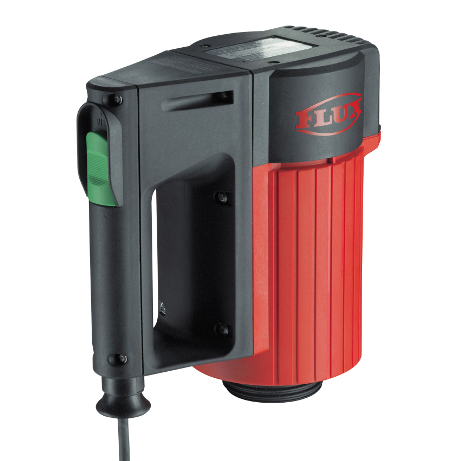

F457 Electric Motor
The F457 is an electric motor built for durability and power while maintaining low noise levels. It has a powerful commutator motor and efficient air cooling within a compact design. This motor is also available as variable speed.
Technical Data:
- Enclosure: IP 24
- Ventilation: Internal
- Voltage: 120 volts or 230 volts
- Frequency: 50 - 60 Hz
- Capacity: 800 W
- Weight: 8.8 lbs (4 kg)
