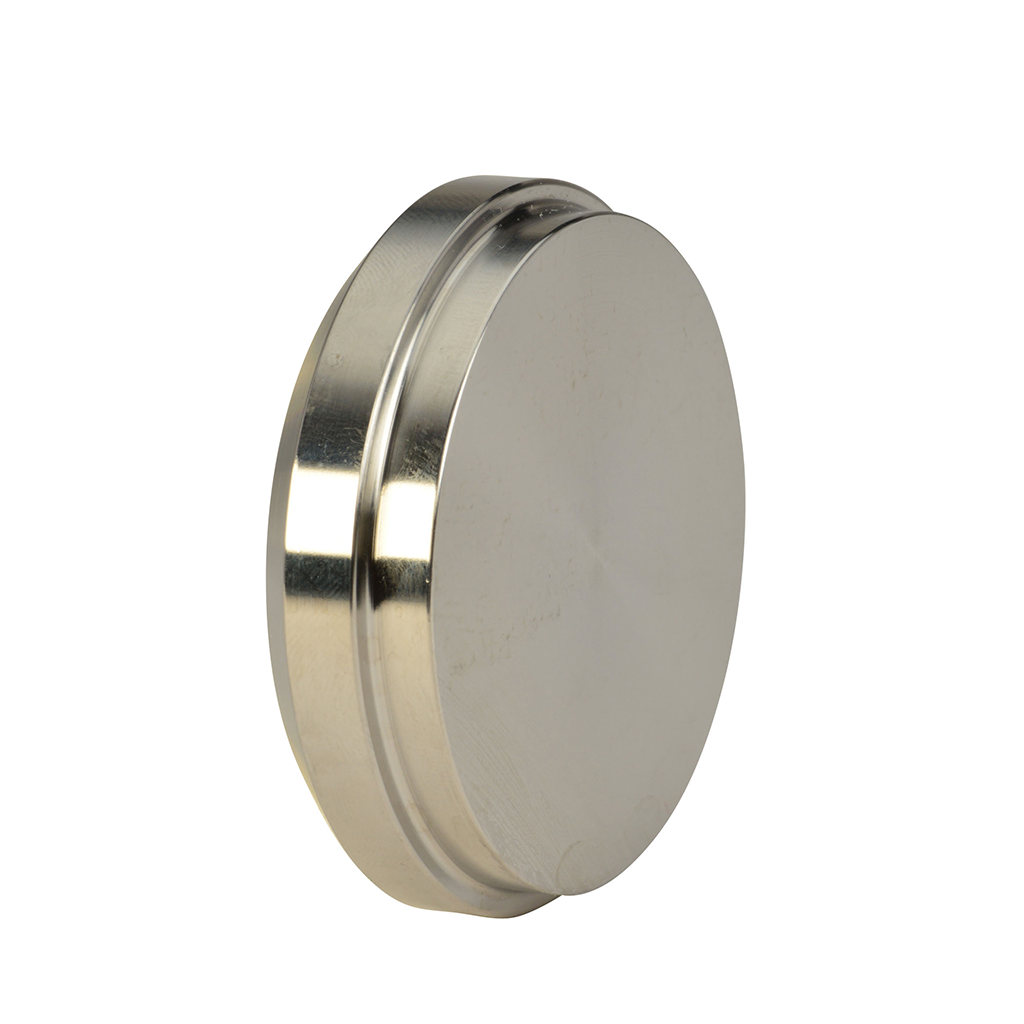

The 16A Plain Bevel Seat Solid End Cap is a sanitary fitting used to seal bevel seat connections when not in operation. This protects pipelines from introducing potential contaminants. The bevel seat end cap Is fitted to a threaded bevel seat ferrule with a Union Hex Nut.
These fittings are constructed of 304 or 316L Stainless Steel, and are available in sizes ranging between 1" and 4".
Plain Bevel Seat Solid End Cap Technical Specifications
- Size Range: 1” through 4”
- Materials: 304 & 316L Stainless Steel
- Surface Finish: 32Ra ID/OD
- Wall Thickness:
- 1” through 3” fittings: 0.065”
- 4” Fittings: 0.083”
- Certification: 3A 63-04 #3756 (Sanitary Fittings)

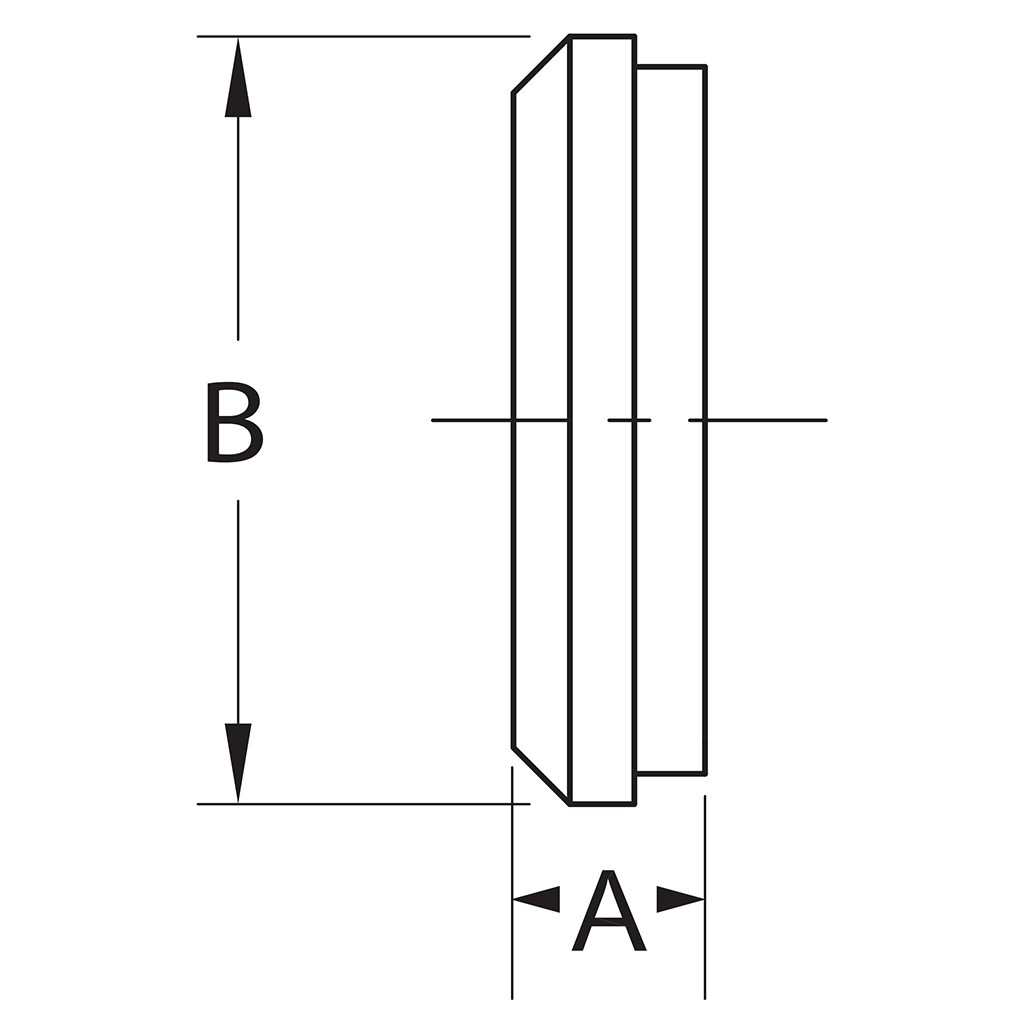

Plain Bevel Seat Solid End Cap Ferrule Measurements
| Tube O.D. | A | B |
| 1" |
0.47 |
1.32 |
| 1-1/2" |
0.56 |
1.85 |
| 2" |
0.63 |
2.38 |
| 2-1/2" |
0.66 |
2.91 |
| 3" |
0.72 |
3.44 |
| 4" | 0.81 |
4.51 |
