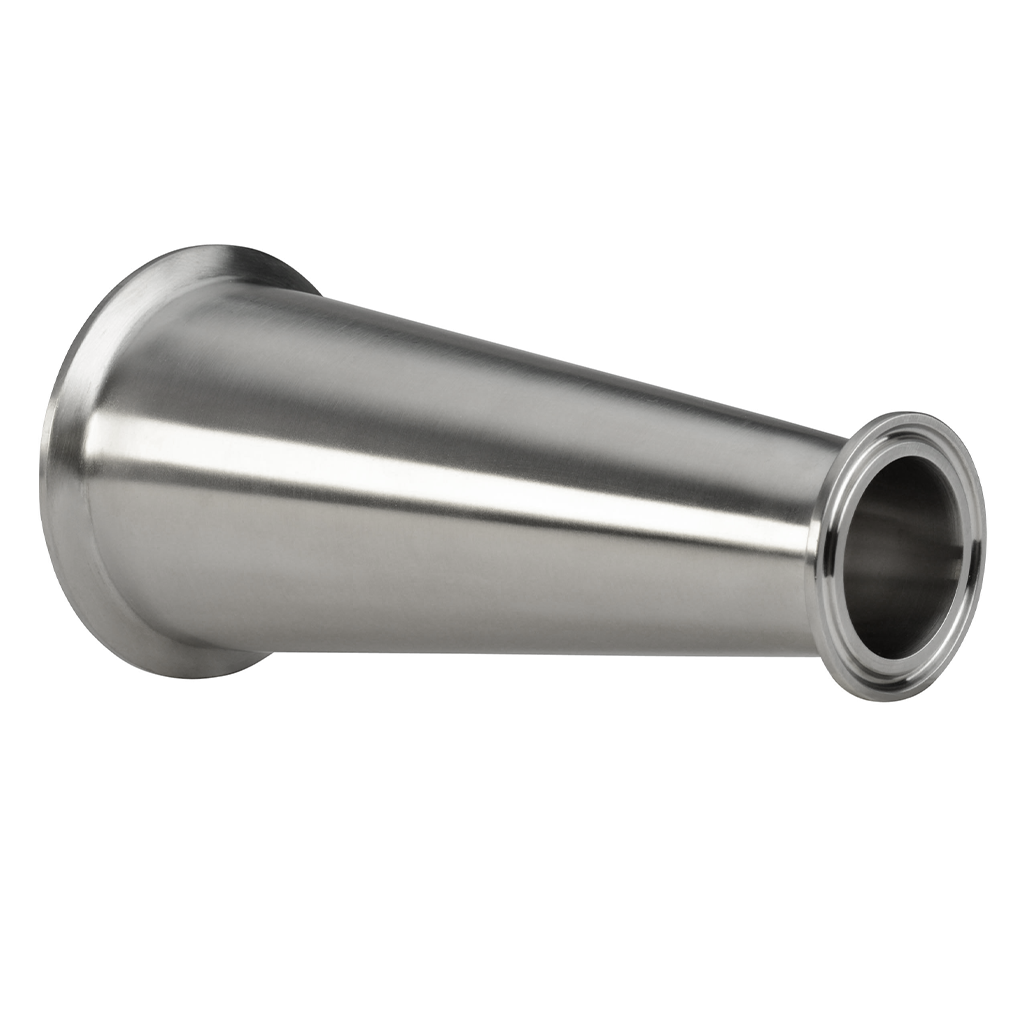

The 31-14MP Tri-Clamp Concentric Reducer is a sanitary fitting that narrows towards the center, forming a cone shape. It is useful for connecting pipe sections with different diameters. It comes in two materials, 304 and 316L stainless steel, and a variety of sizes. The tube has an outside diameter (O.D.) of ½" up to 12".
It is 3A certified for use in food and beverage processing industries.

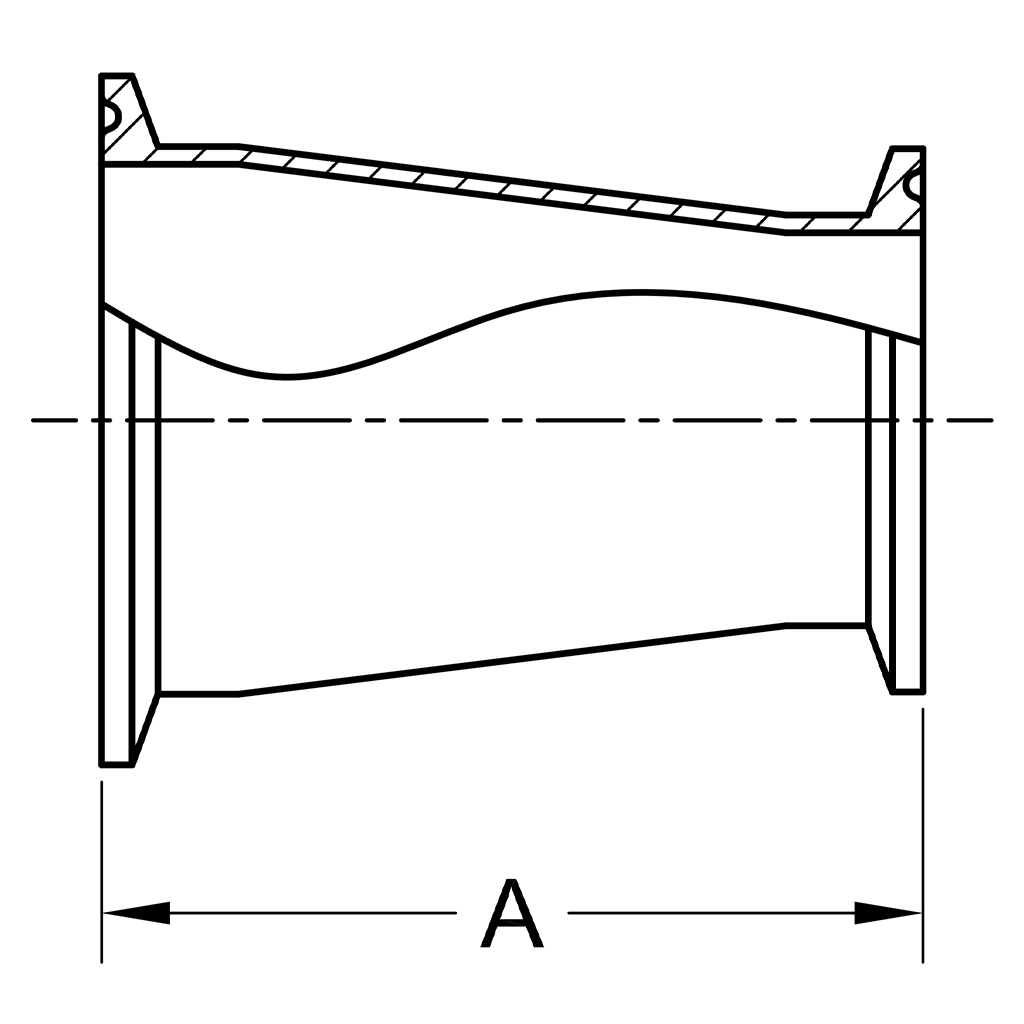

| Tube O.D. | A |
| 3/4" X 1/2" | 2.00 |
| 1" X 1/2" | 3.00 |
| 1" X 3/4" | 2.00 |
| 1-1/2" X 1/2" | 5.00 |
| 1-1/2" X 3/4" | 4.00 |
| 1-1/2" X 1" | 3.00 |
| 2" X 1/2" | 7.00 |
| 2" X 3/4" | 6.00 |
| 2" X 1" | 5.00 |
| 2" X 1-1/2" | 3.00 |
| 2-1/2" X 1" | 7.00 |
| 2-1/2" X 1-1/2" | 5.00 |
| 2-1/2" X 2" | 3.00 |
| 3" X 1" | 9.00 |
| 3" X 1-1/2" | 7.00 |
| 3" X 2" | 5.00 |
| 3" X 2-1/2" | 3.00 |
| 4" X 1" | 13.13 |
| 4" X 1-1/2" | 11.12 |
| 4" X 2" | 9.12 |
| 4" X 2-1/2" | 7.12 |
| 4" X 3" | 5.12 |
| 6" X 2" | 6.87 |
| 6" X 3" | 6.87 |
| 6" X 4" | 7.00 |
| 8" X 4" | 7.50 |
| 8" X 6" | 7.75 |
| 10" X 8" | 8.75 |
| 12" X 10" | 9.75 |
