The 32-14MP Tri-Clamp Eccentric Reducer is a sanitary fitting that narrows towards the center with one side of the reducer remaining flat. This fitting connects tubes of two different diameters and the flat edge reduces the chance of trapped air. It comes in two materials, 304 and 316L stainless steel, and a variety of sizes. The tube has an outside diameter (O.D.) of ½" up to 12".
It is 3A certified for use in food and beverage processing industries.

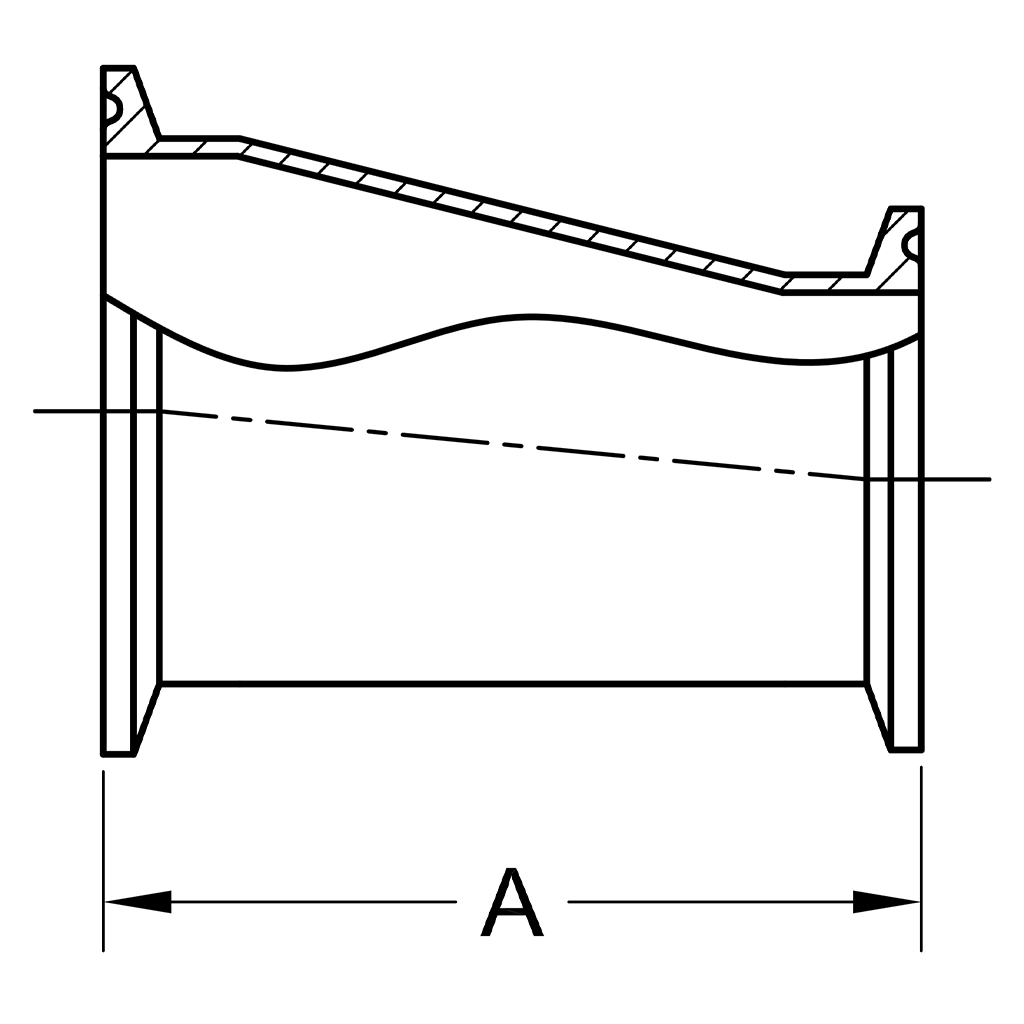

| Tube O.D. | A |
| 3/4" X 1/2" | 2.00 |
| 1" X 1/2" | 3.00 |
| 1" X 3/4" | 2.00 |
| 1-1/2" X 1/2" | 5.00 |
| 1-1/2" X 3/4" | 4.00 |
| 1-1/2" X 1" | 3.00 |
| 2" X 1/2" | 7.00 |
| 2" X 3/4" | 6.00 |
| 2" X 1" | 5.00 |
| 2" X 1-1/2" | 3.00 |
| 2-1/2" X 1" | 7.00 |
| 2-1/2" X 1-1/2" | 5.00 |
| 2-1/2" X 2" | 3.00 |
| 3" X 1" | 9.00 |
| 3" X 1-1/2" | 7.00 |
| 3" X 2" | 5.00 |
| 3" X 2-1/2" | 3.00 |
| 4" X 1" | 13.13 |
| 4" X 1-1/2" | 11.12 |
| 4" X 2" | 9.12 |
| 4" X 2-1/2" | 7.12 |
| 4" X 3" | 5.12 |
| 6" X 2" | 6.87 |
| 6" X 3" | 6.87 |
| 6" X 4" | 7.00 |
| 8" X 4" | 7.50 |
| 8" X 6" | 7.75 |
| 10" X 8" | 8.75 |
| 12" X 10" | 9.75 |
