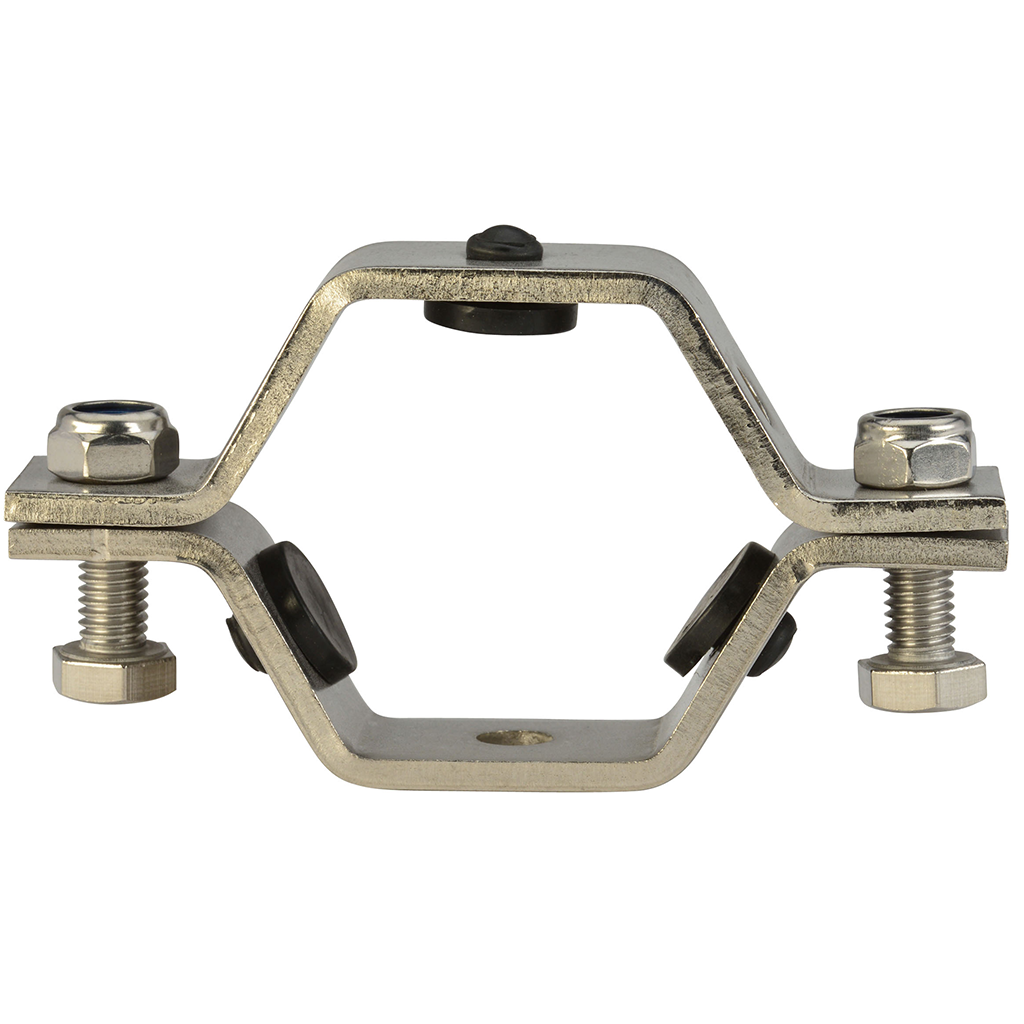

The RGHT - Tube Hanger with Grommet is a sanitary tube hanger for process lines. The RGHT hanger is versatile, it can be used vertically or horizontally and can be installed in a variety of ways. Other sizes are available upon request. Please call with any inquiries.
Tube Hanger w. Grommet Technical Specifications:
- Temperature Range: -22°F to 158°F
- Grommet Material: EPDM
- Body Material: 304 stainless steel
- Surface finish: Tumbled
-
Imperial - 5/16"-18 Bolts and Nuts

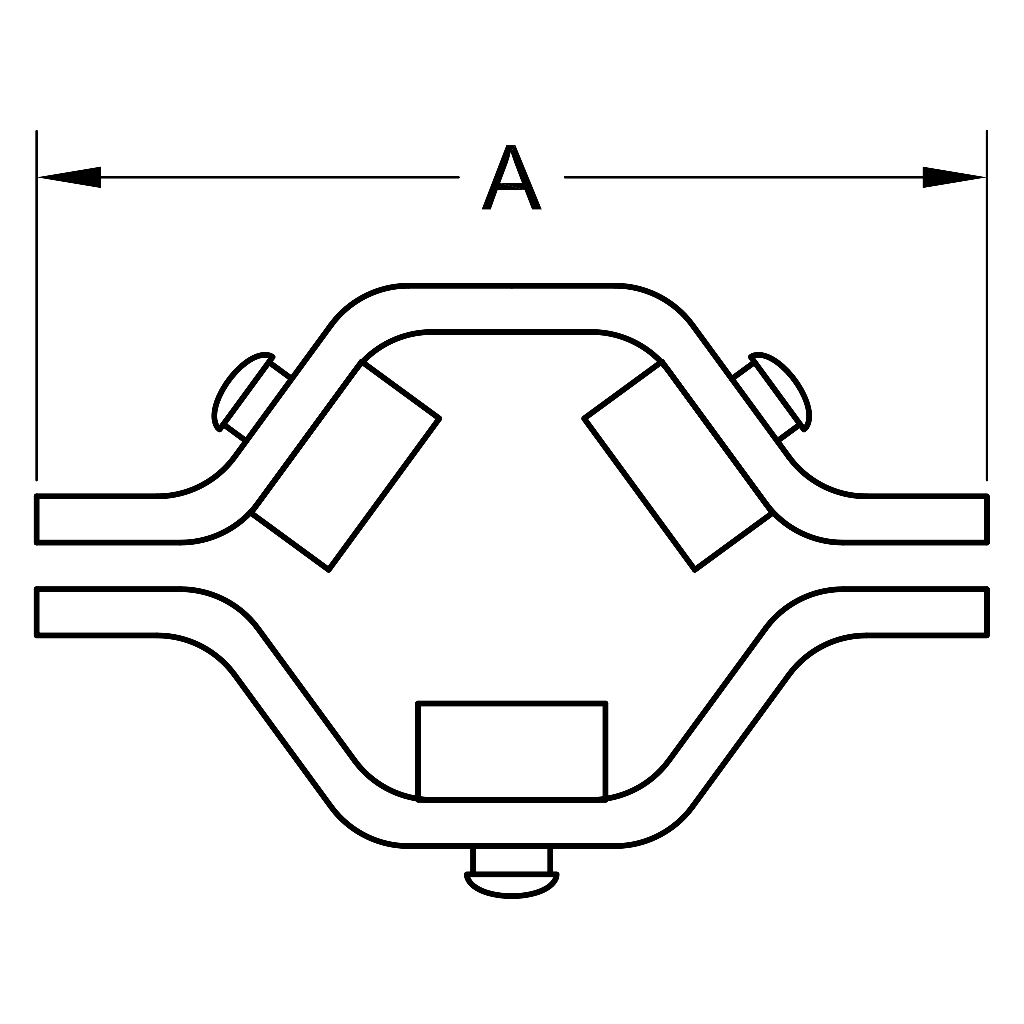

Tube Hanger w. Grommet Measurements:
| Tube O.D. | A |
| 1.2" | 3.42 |
| 3/4" | 3.42 |
| 1" | 3.62 |
| 1-1/2" | 3.62 |
| 2" | 4.31 |
| 2-1/2" | 4.87 |
| 3" | 5.50 |
| 4" | 6.56 |
| 6" | 9.00 |
| 8" | 11.50 |
| 10" | 14.50 |
| 12" | 16.63 |
