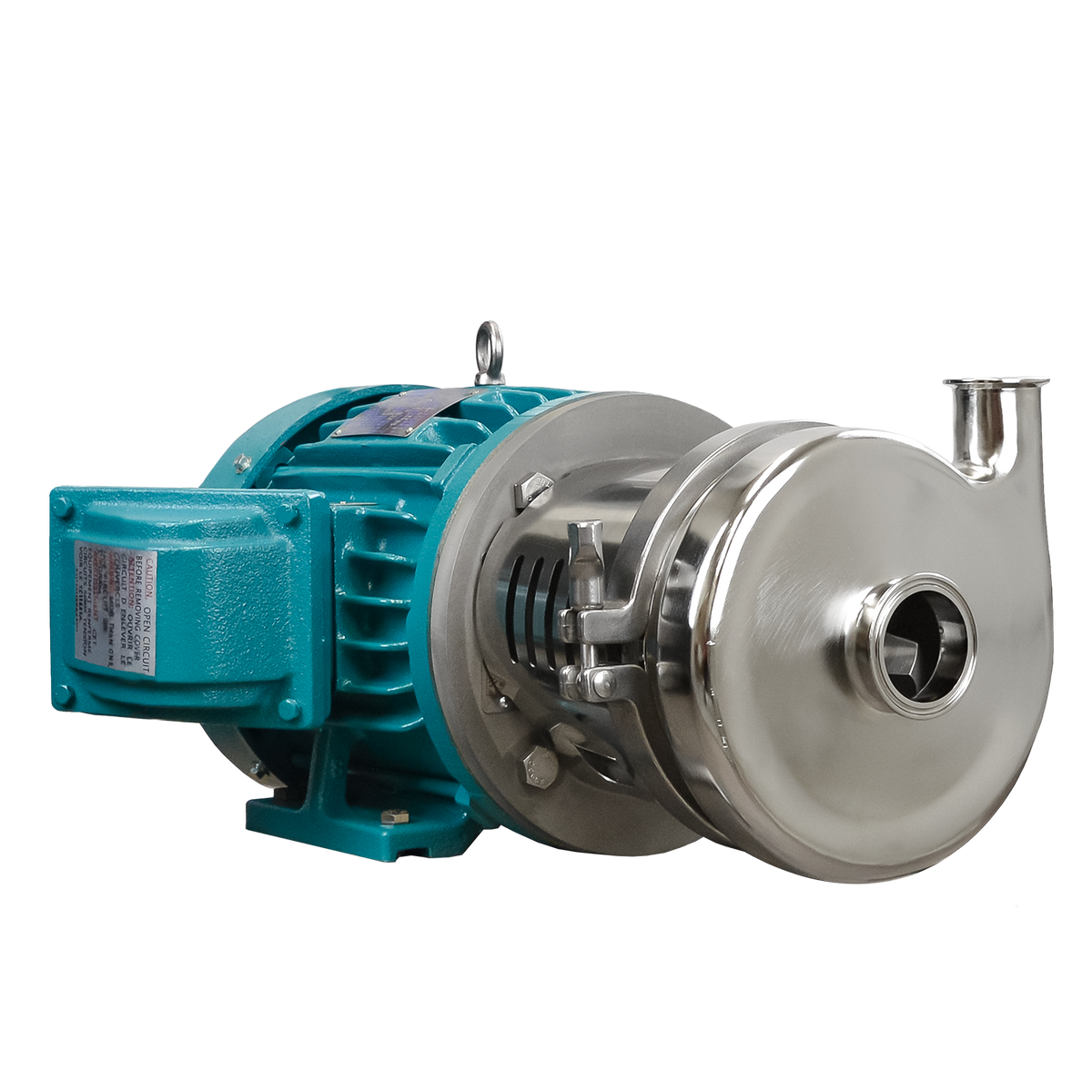

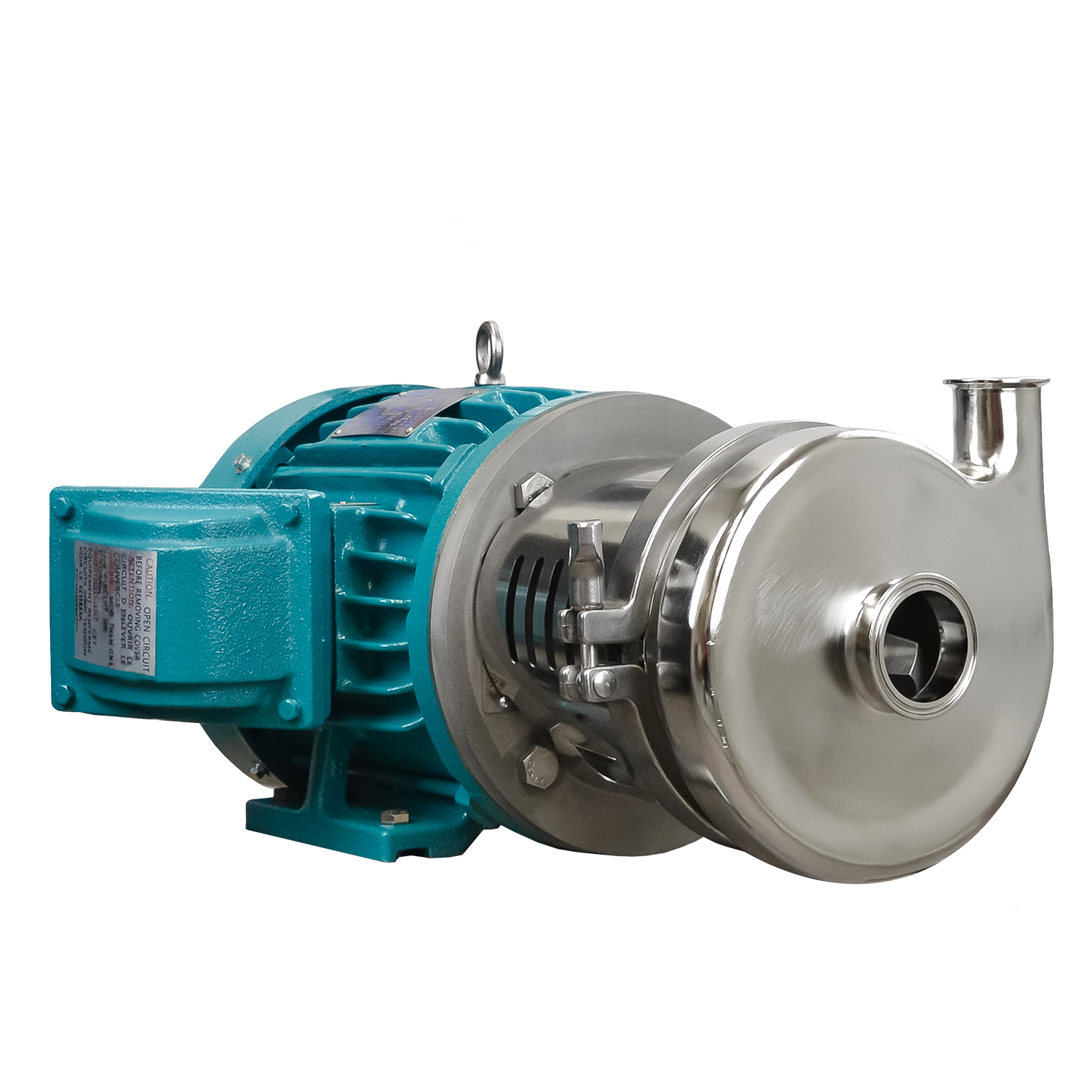

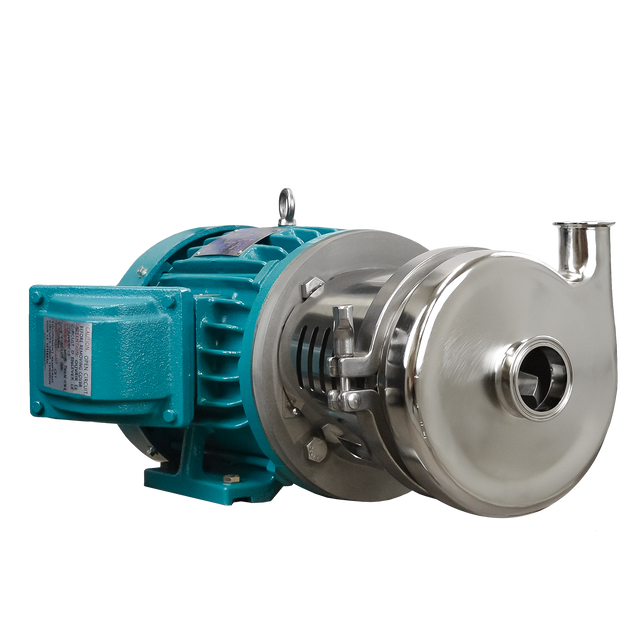

C216MD Pump With Explosion-Proof Motor

The C216MD Pump with Explosion-Proof Motor is a sanitary transfer pump designed for moving flammable liquids safely. It combines a C216 pump head with an explosion-proof motor. The explosion-proof motor makes the pump suitable for high-proof alcohol, ethanol, and other flammable liquids, and is ideal for distilling, producing alcohol-blended drinks, and herbal extraction. Beyond those uses, the C216 pump head is also a good match for medium-sized process applications in the dairy, food, beverage, and pharmaceutical industries.

The pump is paired with a cast iron, NEMA C-Face Premium Efficiency explosion-proof motor, UL/CSA approved for Class I, Groups C and D, and Class II, Groups E, F, and G (T3B). It is supplied as a pump and motor only, without a switch or cart. For a mobile, ready-to-move setup with a Killark explosion-proof motor starter, see C216MD Explosion-Proof Portable Pump Assembly.

Key Features:

• Clean-in-place (CIP)-ready design.
• External seal can be cleaned easily using CIP methods or by hand.
• Replaceable parts compatible with most major brands of C-Series pumps.
• Standard 2" x 1.5" Tri-Clamp connections; other types available by special order.
• UL/CSA approved for Class I, Groups C and D, and Class II, Groups E, F, and G.

Voltage Options:

The explosion-proof C216 is available in three-phase power. Single-phase motors are available in 1-1/2 HP as a special order. Contact us for a quote.

• 230 volt single phase (special order only for 1-1/2 HP motors)
• 230 volt three phase
• 460 volt three phase
• 575 volt three phase

Seal Options:

• D Seal: Single mechanical external seal.
• DG Seal: Single mechanical external seal with a replaceable silicon carbide seat.
• F Seal: Single mechanical external seal with water cascade.

Horsepower Options:

Available from 1-1/2 HP to 15 HP, this pump can be matched to a range of transfer applications. For 10 and 15 HP motors, please contact our sales team. The 1-1/2 HP and 2 HP motors are 1800 rpm. Pairing a larger pump with a slower 1800 rpm motor provides gentle flow at high volumes; perfect for shear-sensitive products.
