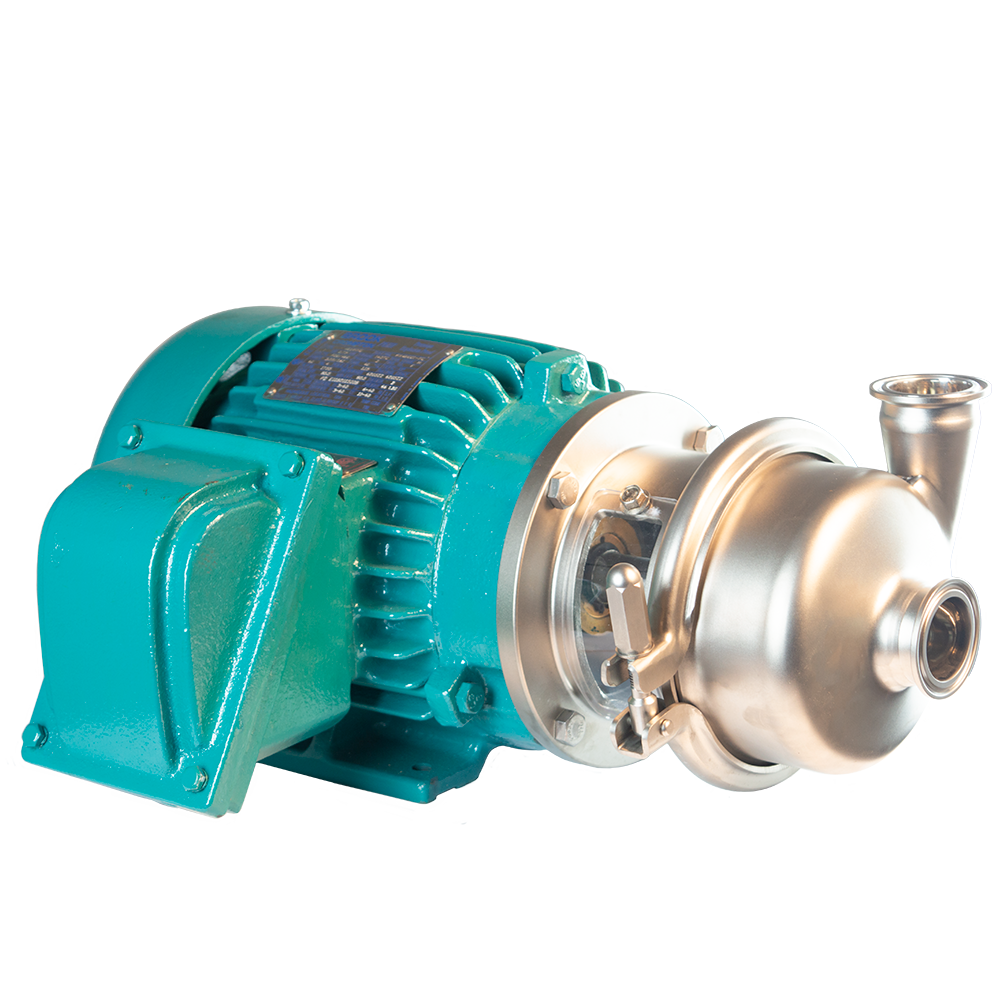

INOXPA Hyginox SEN-20 Centrifugal Pump with Explosion Proof Motor

Hyginox SEN 20 Internally Sealed Portable Pump

The INOXPA HYGINOX SEN-20 pump is perfect for busy distilleries. A close-coupled, stainless steel centrifugal pump, the Hyginox series comes with a long-lasting internal mechanical seal for minimal maintenance and increased durability. These internal seals help reduce product build-up and leaking and improve reliability, providing a pump that just keeps going without hassle or fuss. The explosion proof motor makes this pump suitable for use with high proof alcohol, ethanol, and other flammable liquids. It is ideal for use in distilling, making alcohol blended drinks, and for herbal extractions.

The pump is paired with a cast iron, NEMA C-Face Premium Efficiency explosion-proof motor, UL/CSA approved for Class I, Groups C and D, and Class II, Groups E, F, and G (T3B). It is supplied as a pump and motor only, without a switch or cart. For a mobile, ready-to-move setup with a Killark explosion-proof motor starter, see the SEN-20 Explosion-Proof Portable Pump Assembly.

Key Features:

The SEN-20 Pump with Explosion-Proof Motor combines the Hyginox SEN-20 pump head, a hygienic close-coupled design with an internal single mechanical seal, with an explosion-proof motor, allowing you to:

• Safely transfer high-proof alcohol, ethanol, and other flammable liquids with a UL/CSA approved explosion-proof motor.
• Keep the seal fully lubricated by the product during use.
• Completely sanitize the seal during CIP.
• Reduce maintenance and extend seal life with an internally sealed design.

• Rely on product-contact parts made of AISI 316L stainless steel.
• Connect with standard 2" x 1.5" Tri-Clamp fittings.

Voltage Options:

The explosion-proof SEN-20 is available in three-phase power and is compatible with 230V, 460V, and 575V.

• 230 volt three phase
• 460 volt three phase
• 575 volt three phase

Seal Materials:

The SEN-20 uses an internal mechanical seal, available in the following materials:

• Elastomers
  • Standard: EPDM
  • Special Order: Viton or PTFE
• Rotary Seal:

  • Standard: Silicon Carbide
• Stationary Seal:
  • Standard: Carbon
  • Special Order: Silicon Carbide

Horsepower Options:

Available from 3 to 15 horsepower, this pump can be matched to a range of transfer applications.

Horsepower	Max Pressure (ft. head)	Max Flow (gpm)
3	80	125
5	98	150
7 1/2	120	160
10	145	185

No manual available for download.
