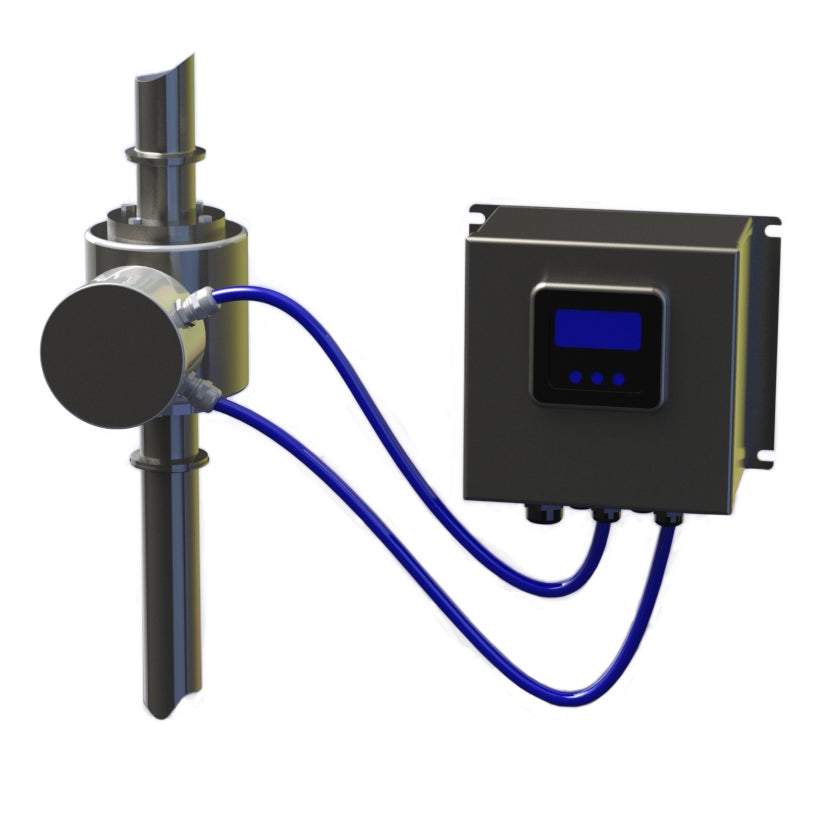

The IZMAG is Anderson-Negele’s full-featured electromagnetic flow meter. This model features a remote mount; this protects the display from the product being measured and allows for a greater variety of products to be measured. The meter features a compact, all stainless steel housing which provides the highest level of protection from the cleaning chemicals and environmental extremes present in food processing facilities. A standard backlit graphic display provides the metering information not only as numbers and text but also has the ability to display images. On the inside, a PFA liner offers increases in pressure, temperature and vacuum capability. In addition to the other features, the flow meter has a compact overall size allowing installation into tight-fitting applications without a sacrifice in measurement performance. This flowmeter can measure product that is hot or cold, thick or thin, and with or without solids.
Features
- Temperature Limits: 32-325F (0-163C)
- Compact design
- Stainless steel housing
- +/- 0.20% accuracy
- Outputs: (2) digital pulse output 24 VDC @20 mA, (1) digital status output 24 VDC @20 mA, (1) 4-20mA passive/active
- 1.4-145 psi abs
- Available in 24 VDC or 115 VAC
