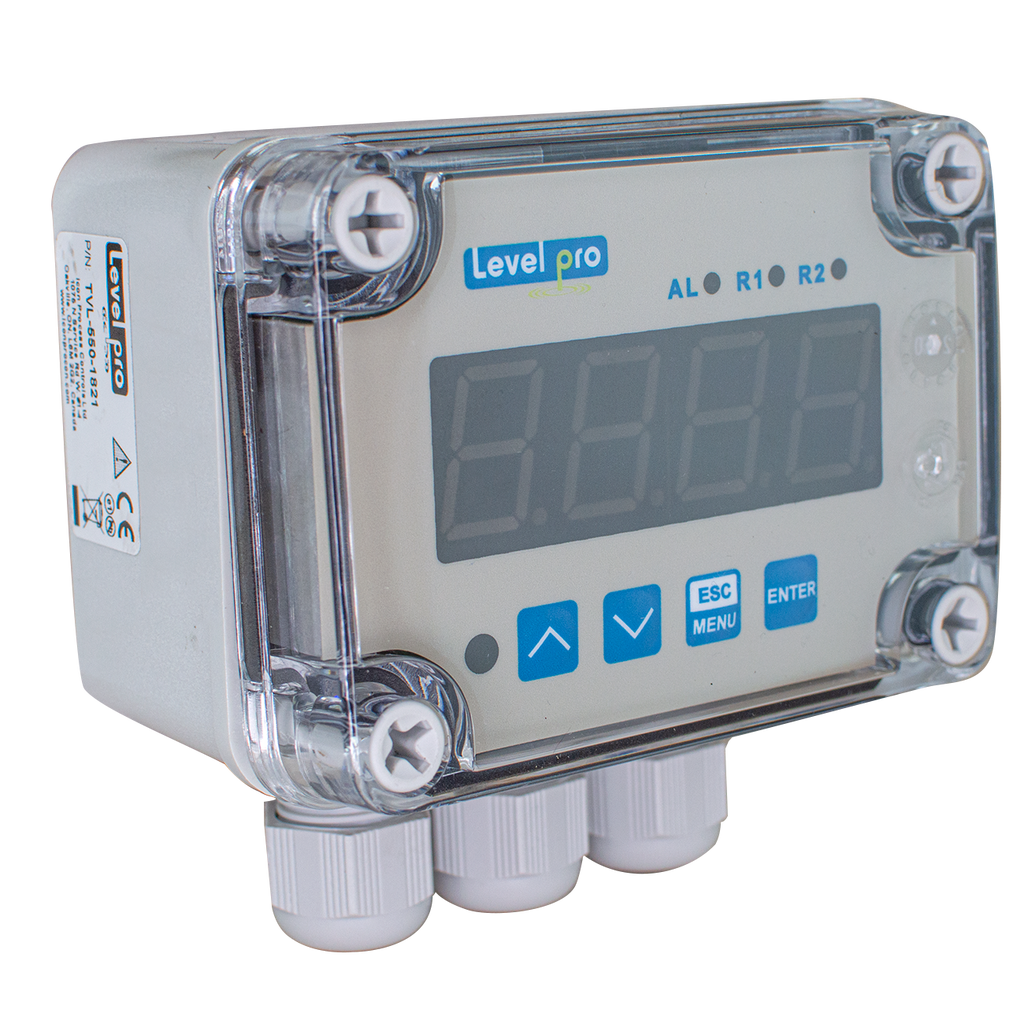

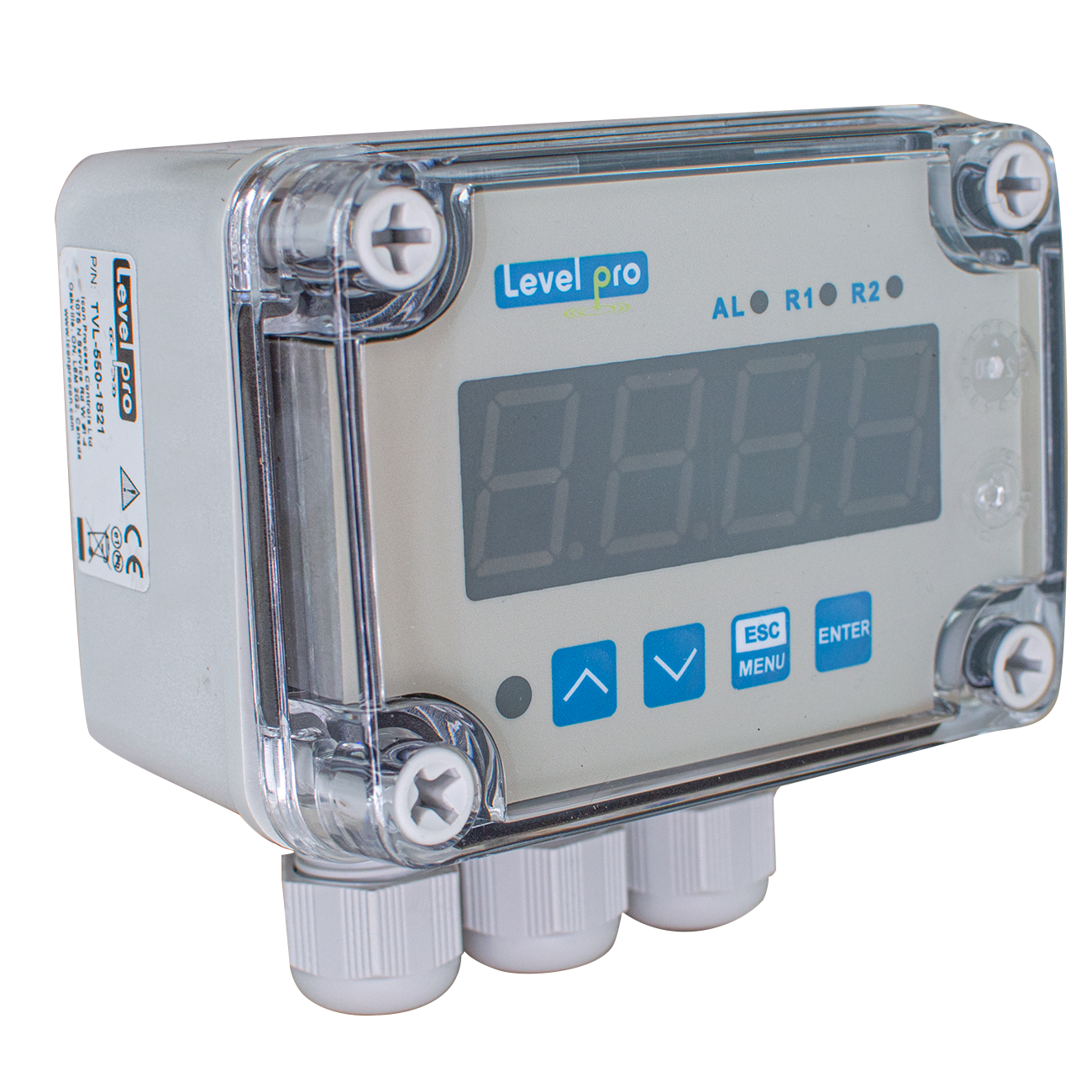

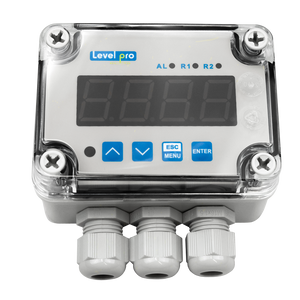

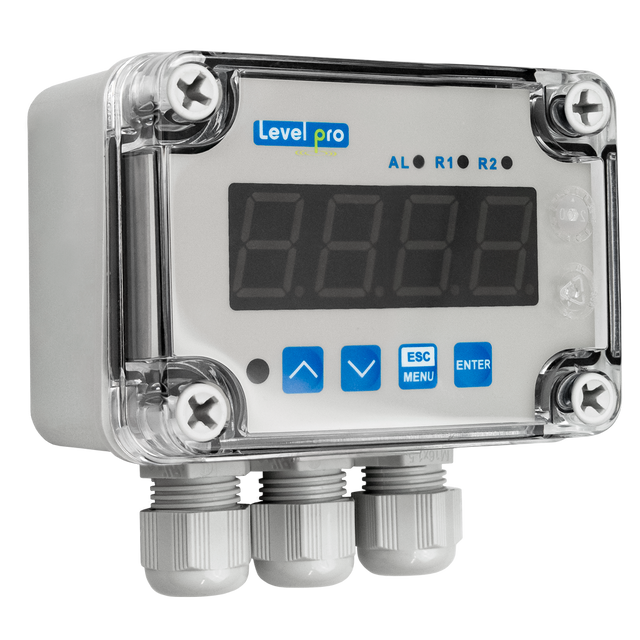

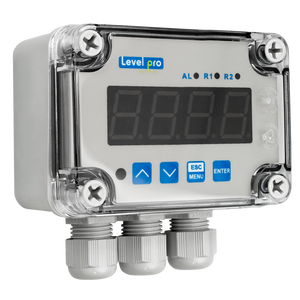

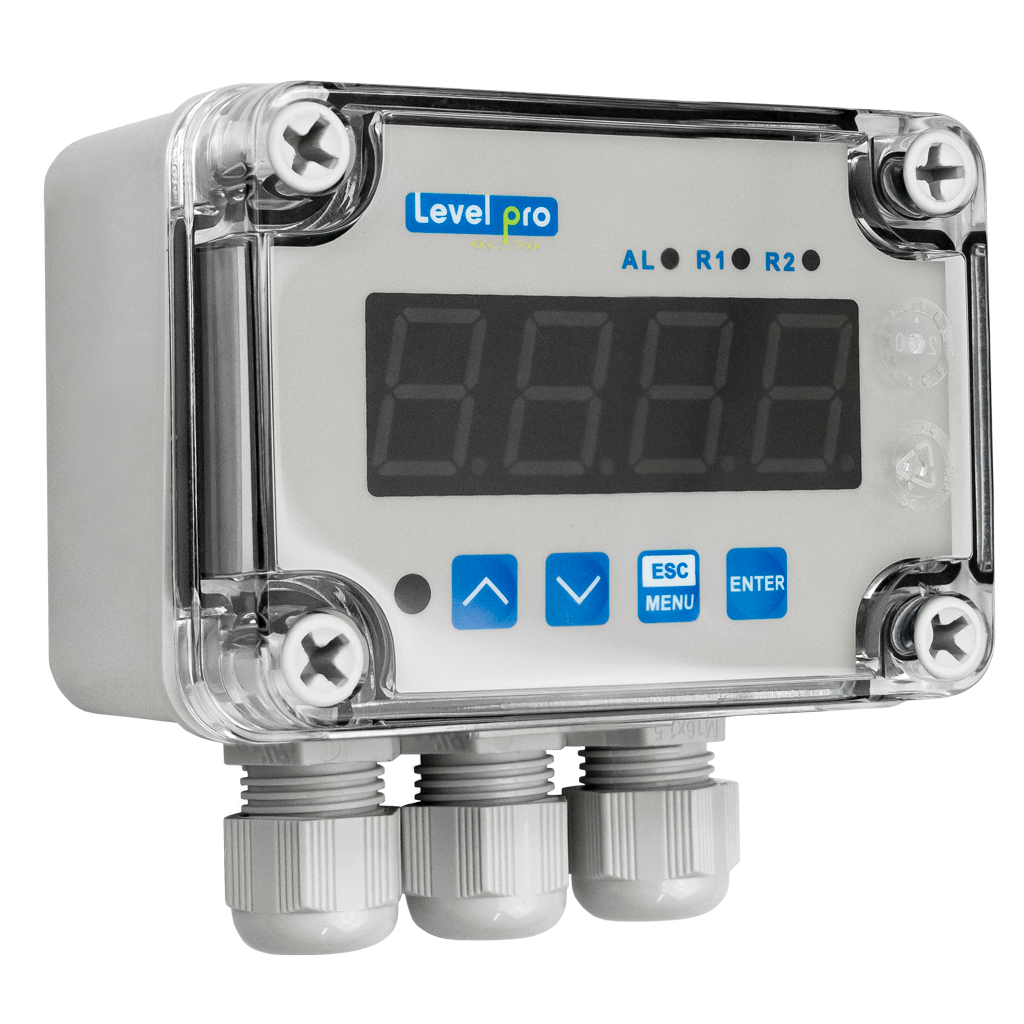

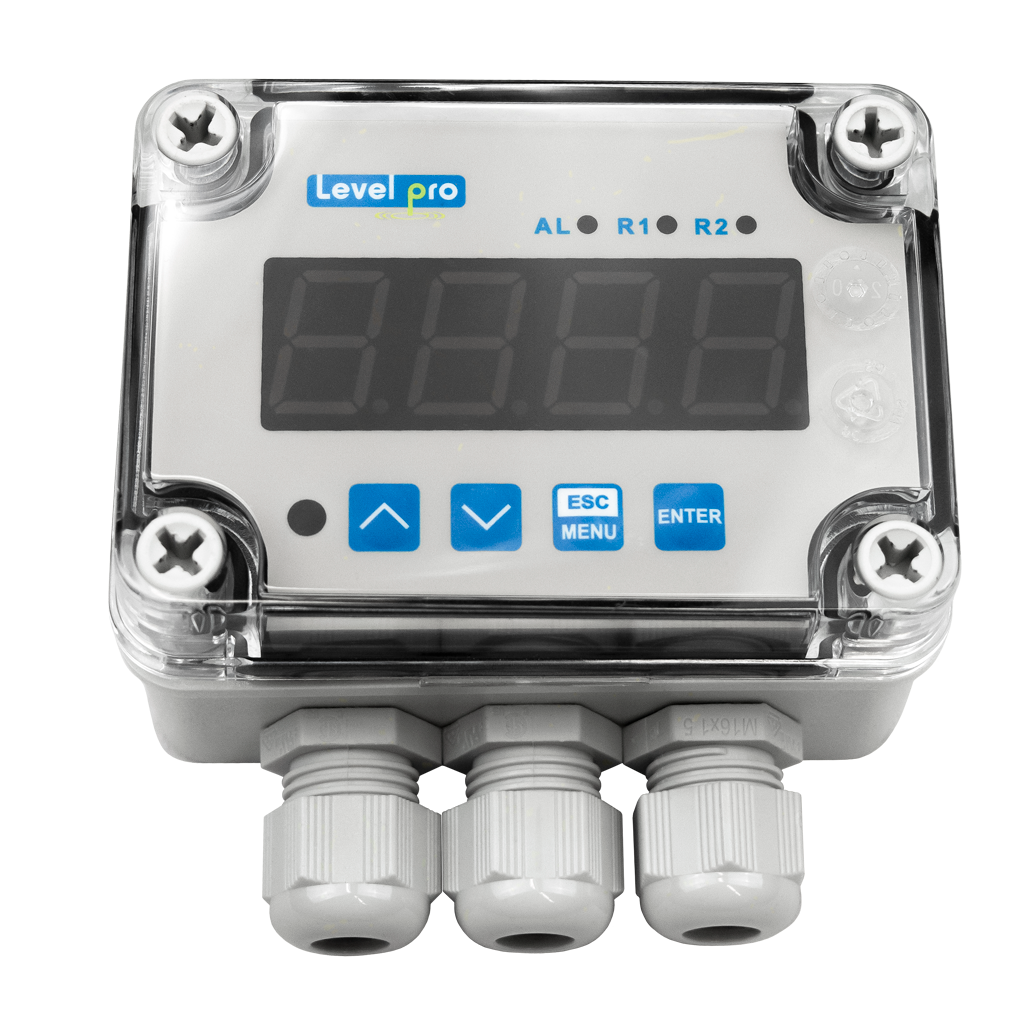

The TVL Level Display is a compact and efficient tank level display unit. It offers reliable liquid level indication for a variety of applications and features an audible and visual high & low level alarm. Large display numbers and 8 brightness settings allow this display to be clearly legible in a variety of settings and environments.
Features:
- NEMA 4X Enclosure
- Input : 4-20mA
- 2 Relay Outputs
- Input 120VAC | Output 24VDC to Power Sensor
- RS-485 | Modbus RTU Standard
- Signal Peak Value Detection
Specifications
- Operating temperature: -40 - 158°F | (-40 - 70°C)
- Dimension: 110 x 105 x 67 mm
- Accuracy: 0.1% @ 25°C One Digit
- Power supply: 85 - 260VAC
- Displayed values: -999 - +9999
