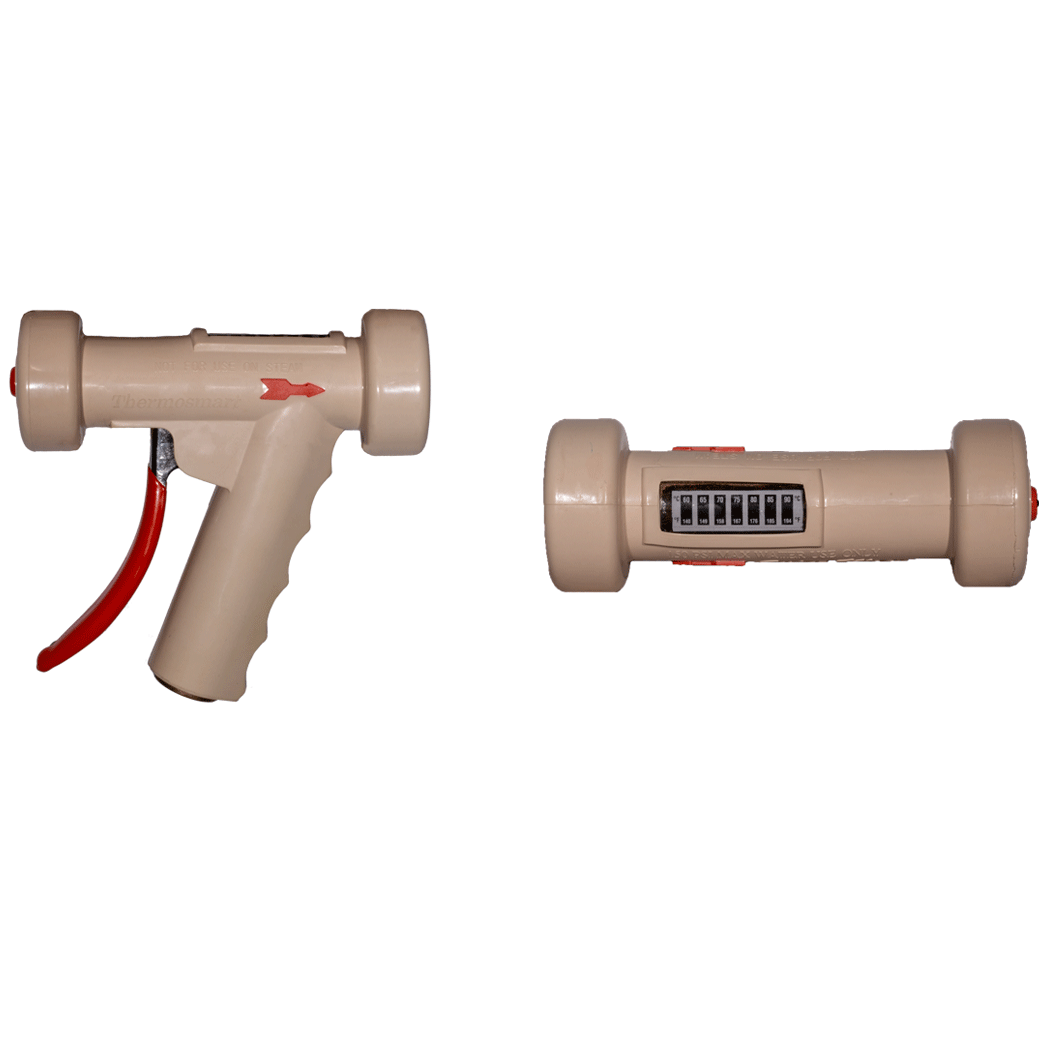

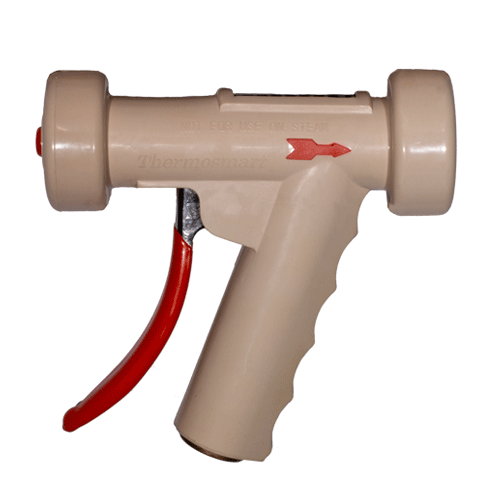

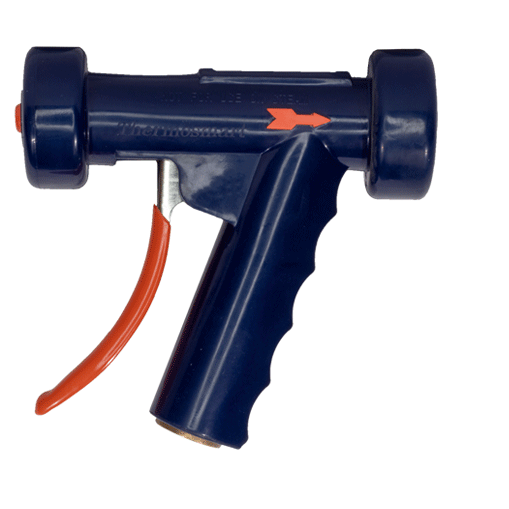

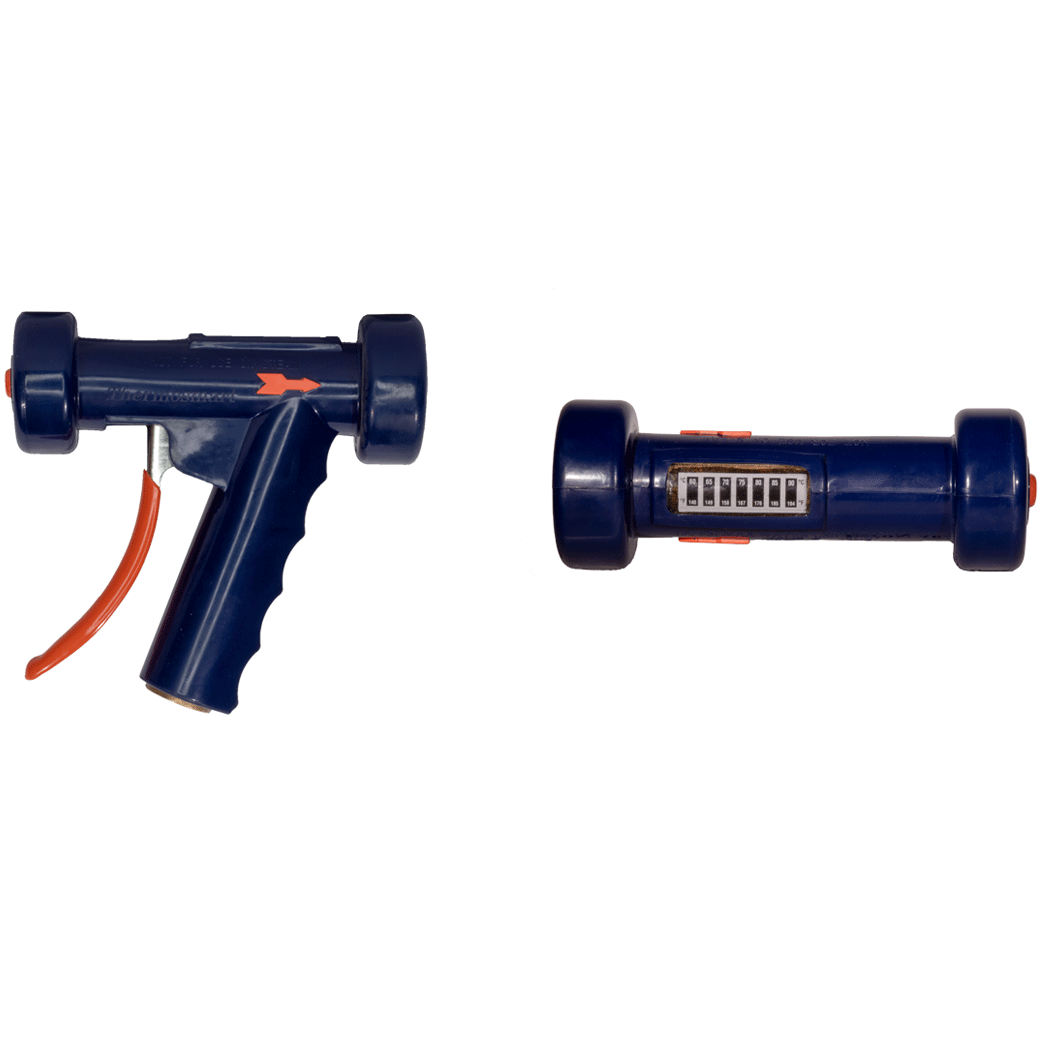

ThermoSmart Spray Nozzle

$209.00

SKU: SN/T150B-DB

SuperKlean specifically designed the ThermoSmart Spray Nozzle to provide accurate water temperature readings at the nozzle output for industrial washdown applications that require precise temperature control. The ThermoSmart Spray Nozzle features a durable temperature read-out on the top of the nozzle, making it easy to read when operating the nozzle. With precision as the priority, the equipped thermostat provides a more accurate temperature reading than mixer-mounted temperature gauges. The thermostat's easy-to-read temperature output facilitates USDA washdown compliance, eliminates the need to verify temperature at the mixing station, and prevents water-related burns. The ThermoSmart's durable construction and chemical resistance makes this spray nozzle perfect for a variety of industries, including dairy, food and beverage, chemical processing, breweries, wineries, pharmaceutical manufacturing, and more.

Adapters are available for this hose nozzle.

Thermostat Spray Nozzle Features:

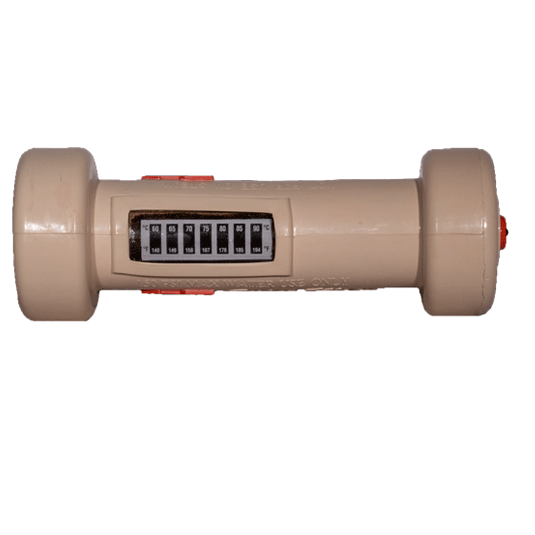

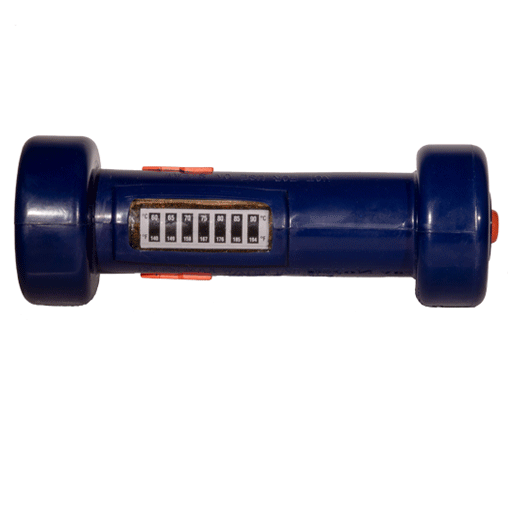

  • Temperature indicating window
  • Enhanced safety
  • Accurate temperature readings
  • USDA/FDA compliance for correct output temperature
  • Interchangeable parts with similar brands

Thermostat Spray Nozzle Technical Specifications

  • Inlet Connection: 1/2" Female NPT
  • Weight
    • Brass: 3 lbs
    • Aluminum: 1.69 lbs
    • Stainless Steel: 2.78 lbs
  • Materials
    • Nozzle Body: Brass, Aluminum, or Stainless Steel
    • Cartridge: Brass or Stainless Steel
  • Reccomended Operative Conditions
    • Maximum Pressure: 150 PSI
    • Maximum Temperature: 200°F (93°C)
STANDARD FLOW

Inlet Pressure *(PSIG) Flow Rate *(GPM)
25 2.93
50 3.86
75 4.91
100 5.78
125 6.71
150 7.19
Note: Standard flow rates can be achieved with the purchase of flow restrictor adapter.
HIGH FLOW
Inlet Pressure *(PSIG) Flow Rate *(GPM)
25 4.39
50 6.54
75 8.18
100 9.56
125 10.83
150 11.89
* Estimated
