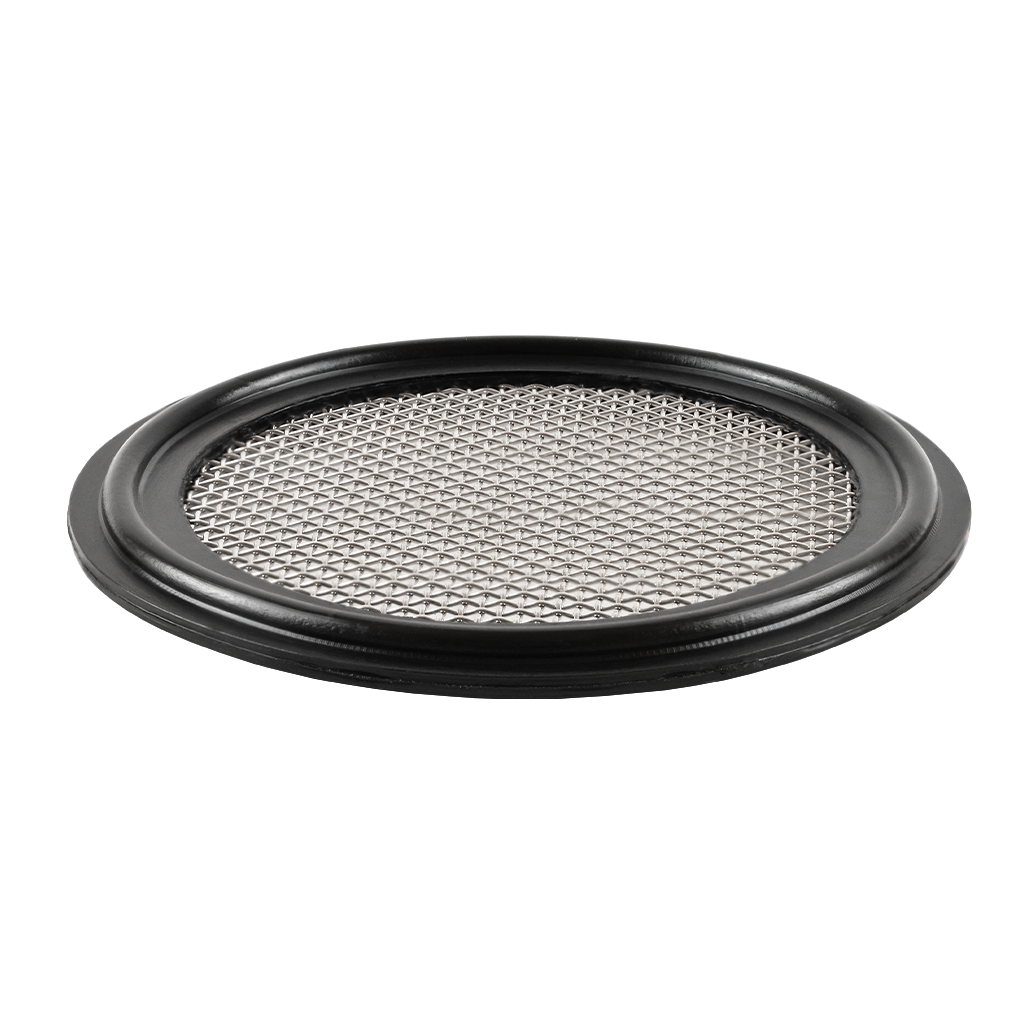

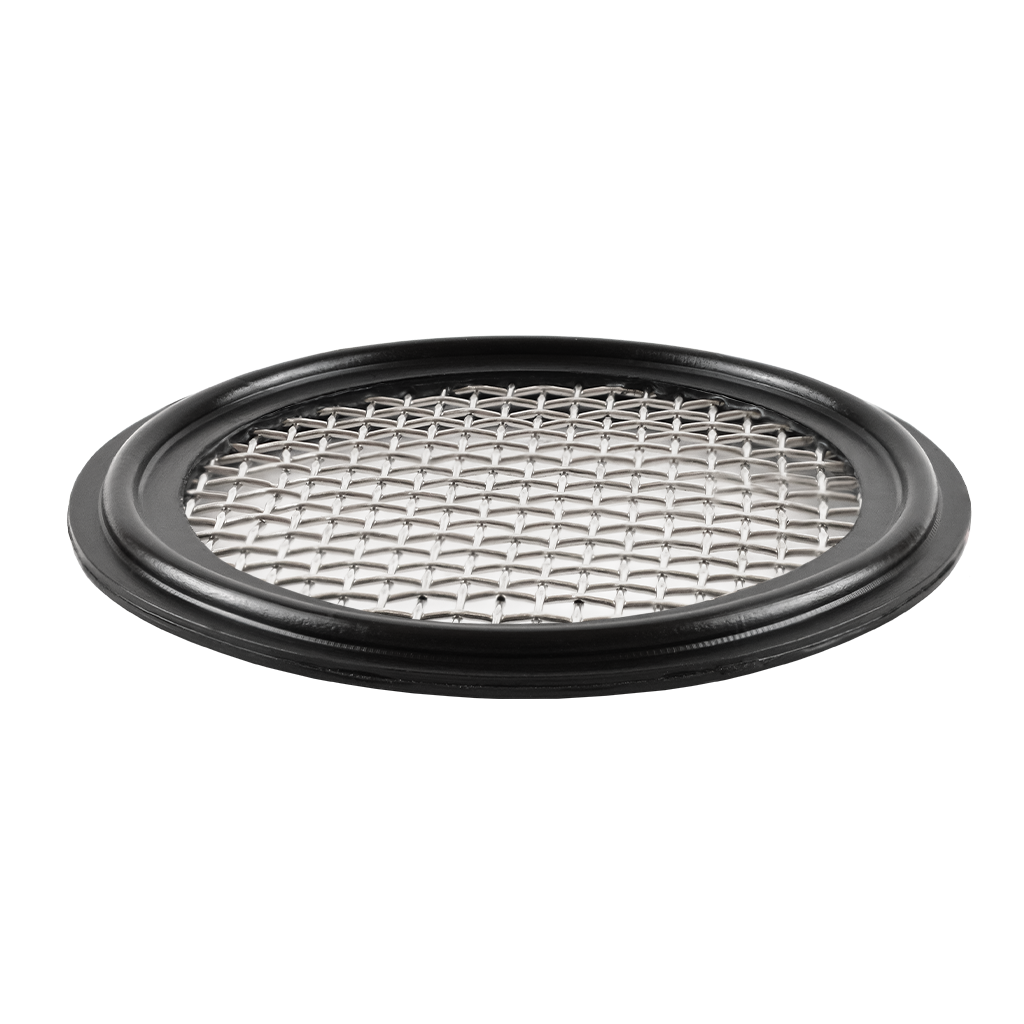

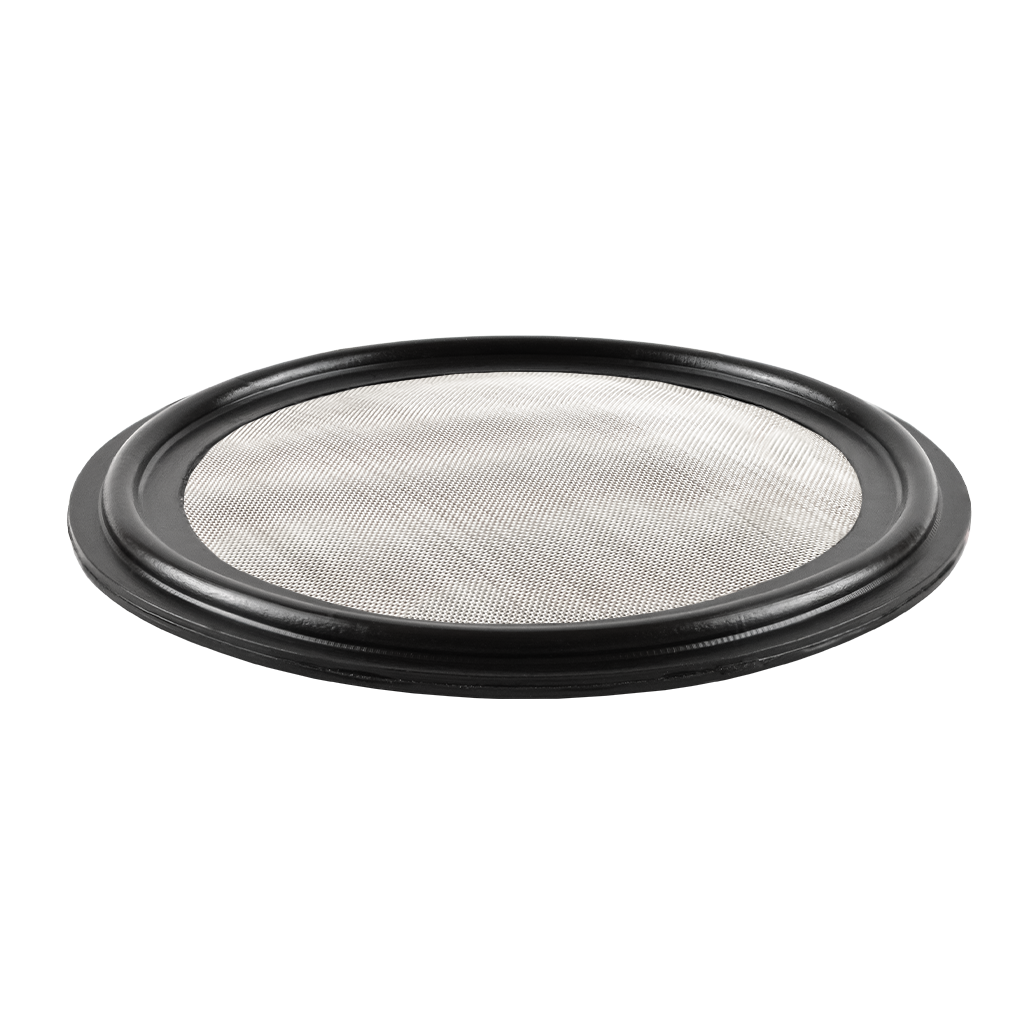

Tri-Clamp Screen Gaskets

The Tri-Clamp Screen Gasket is a specialized sanitary gasket that provides a sturdy leak-proof seal and filtration in process lines. Screen gaskets are commonly used to prevent solids and particulates from damaging equipment. These gaskets are easy to install, clean, and maintain and provide effective filtration with minimal effect to flow. The inner mesh is 316L stainless steel, allowing it to be durable, flexible, and food safe. The mesh is available in a variety sizes and as either single or double screen to meet a variety of processing applications. The gasket fits Tri-Clamp fittings and is available in Viton, EPDM, and NBR (Buna); Silicone is also available by special order. Standard screen gaskets have a single layer of mesh, but double screens are available for applications that need further filtration. These gaskets are made in the USA and are FDA approved and 3A certified for use in sanitary applications.

* LARGER 6" GASKETS AND OTHER MESH SIZES ARE AVAILABLE BY SPECIAL ORDER *

Mesh Vs. Microns Chart

US Mesh	Microns	Inches
10	2000	0.0787
12	1680	0.0661
14	1410	0.0555
16	1190	0.0469
18	1000	0.0394
20	840	0.0311
25	710	0.0280
30	590	0.0232
35	500	0.0197
40	420	0.0165
45	350	0.0137
50	297	0.0117
60	250	0.0098
70	210	0.0083
80	177	0.0070
100	149	0.0059
120	125	0.0049
140	105	0.0041
170	88	0.0035
200	74	0.0029
230	62	0.0024
270	53	0.0021
325	44	0.0017
400	37	0.0015
550	25	0.0009
800	15	0.0006
1250	10	0.0004
